AEM X-Series 35psi Boost Pressure Gauge


AEM X-Series 35psi Boost Pressure Gauge


AEM’s X-Series -30in/Hg~35PSI / -1~2.5BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 35 PSI or 2.5 BAR in their high performance vehicle.


In stock

This product may not be available for local pick-up. Contact us for more details.




Quick Specs

  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
  • Programmable center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter
  • User selectable standard or metric display ( -30in/Hg~35PSI / -1~2.5BAR)
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings

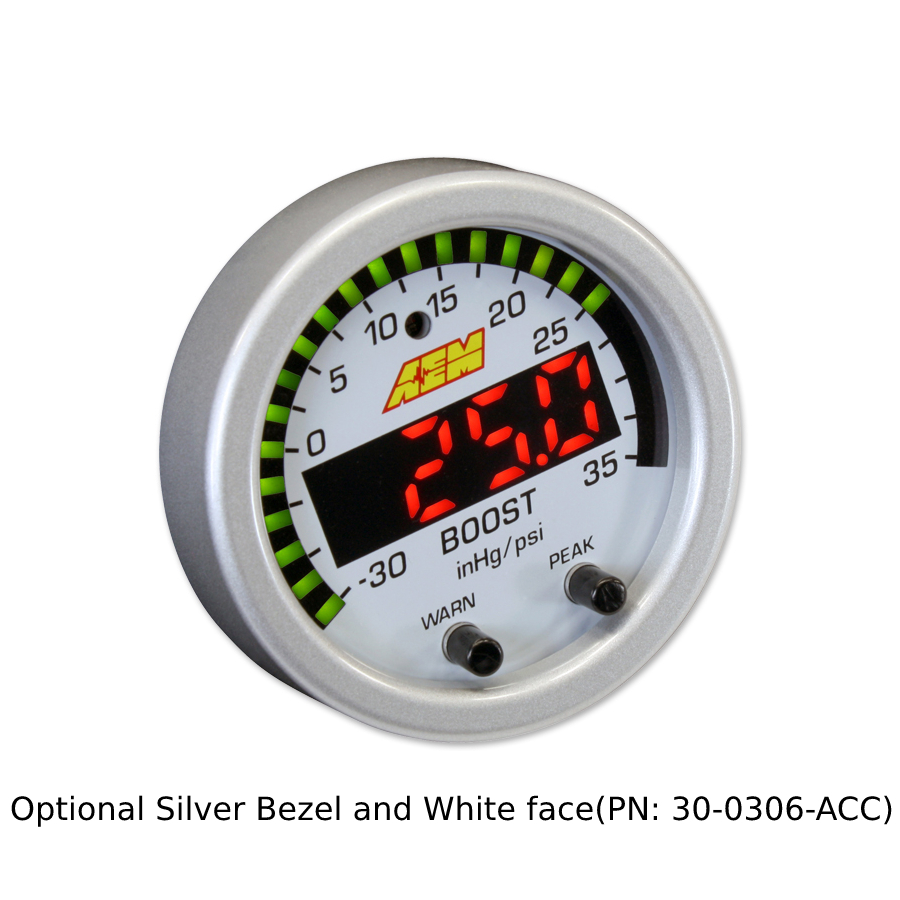

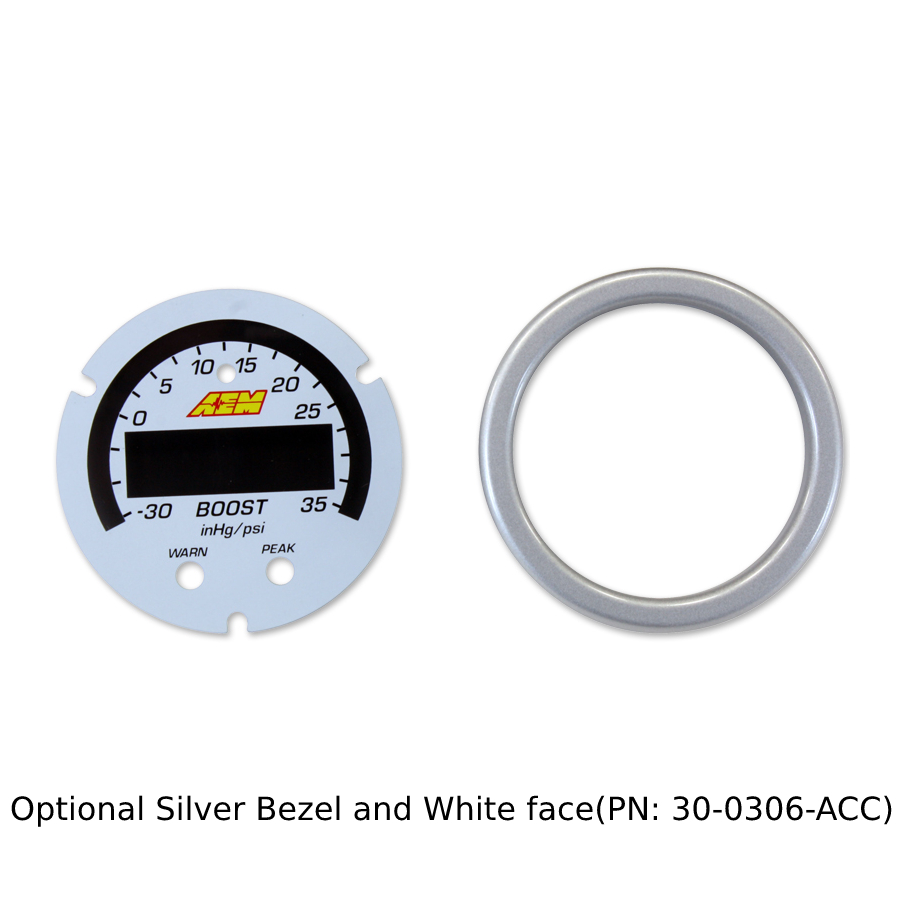

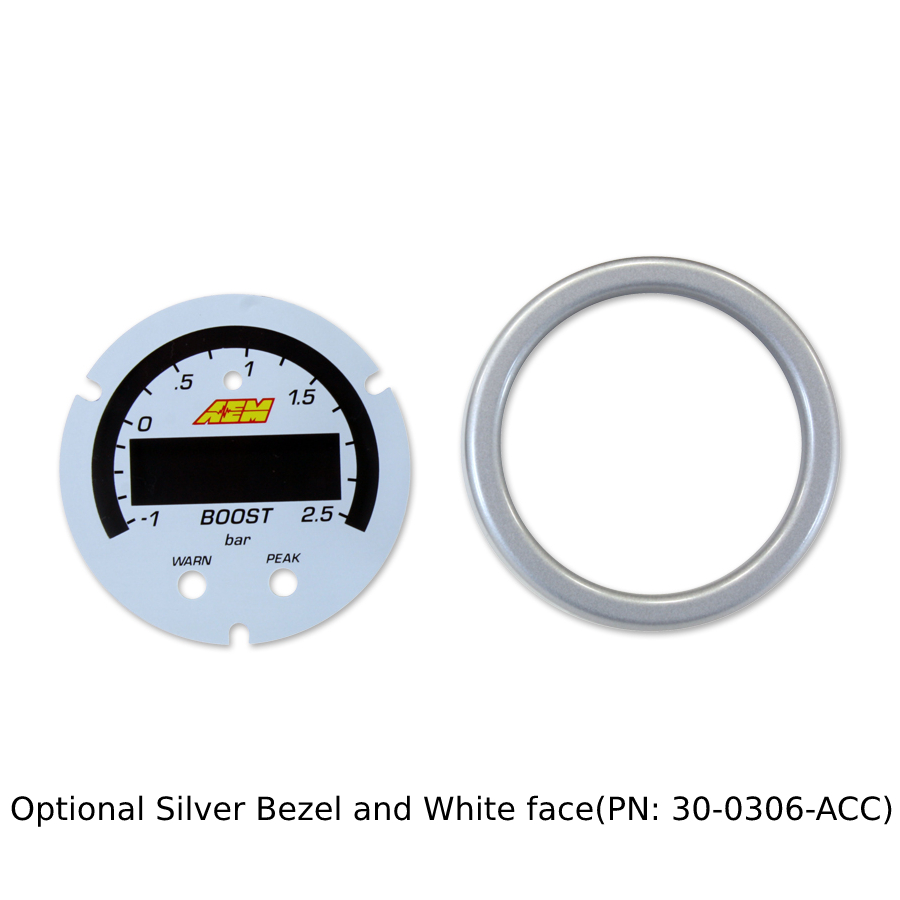

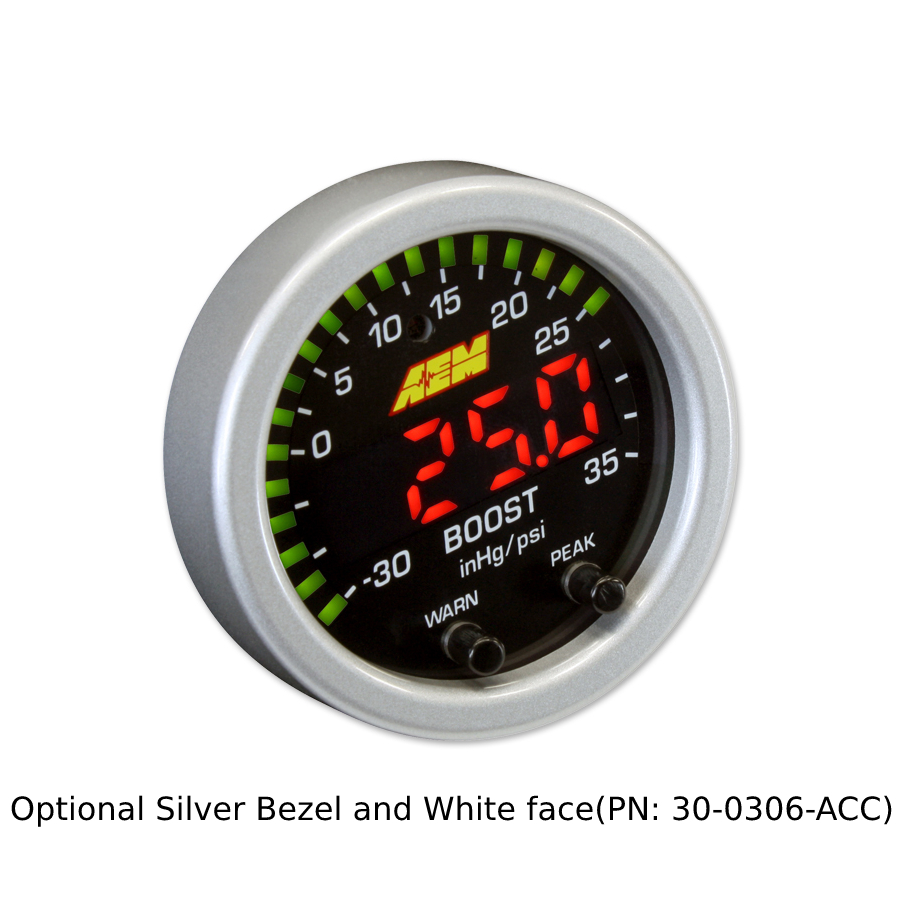

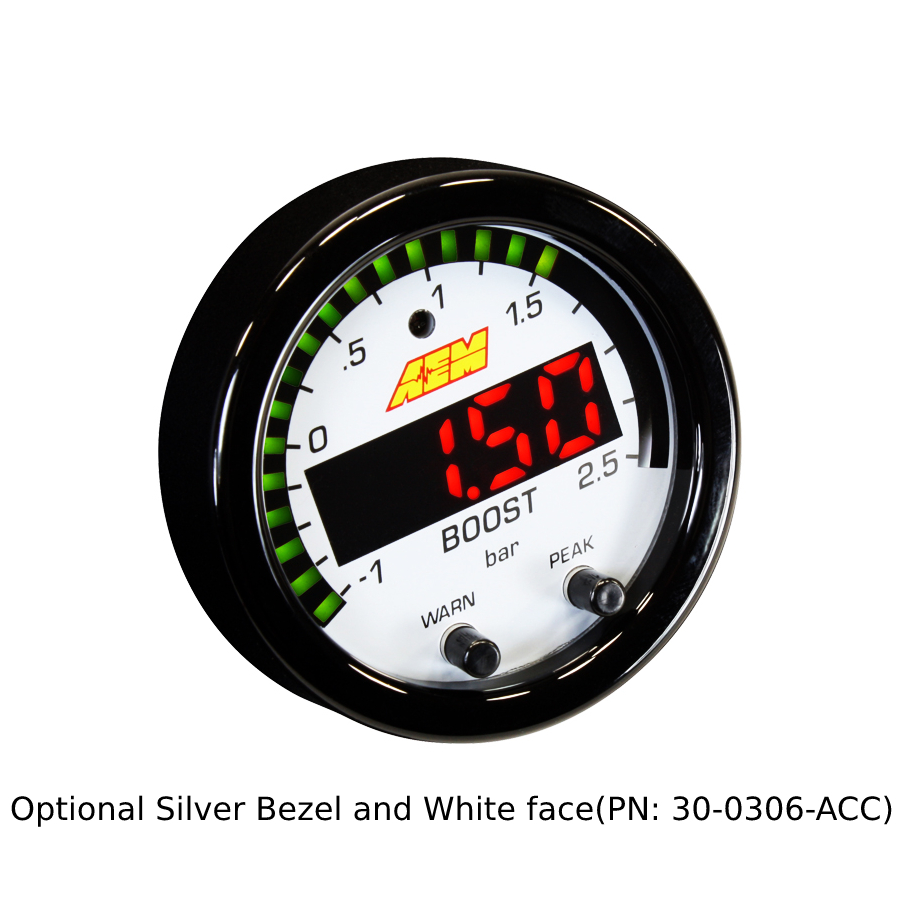

  • Optional silver bezel and white faceplate accessory kit available (sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection


  • Boost ( -30in/Hg~35PSI / -1~2.5BAR)

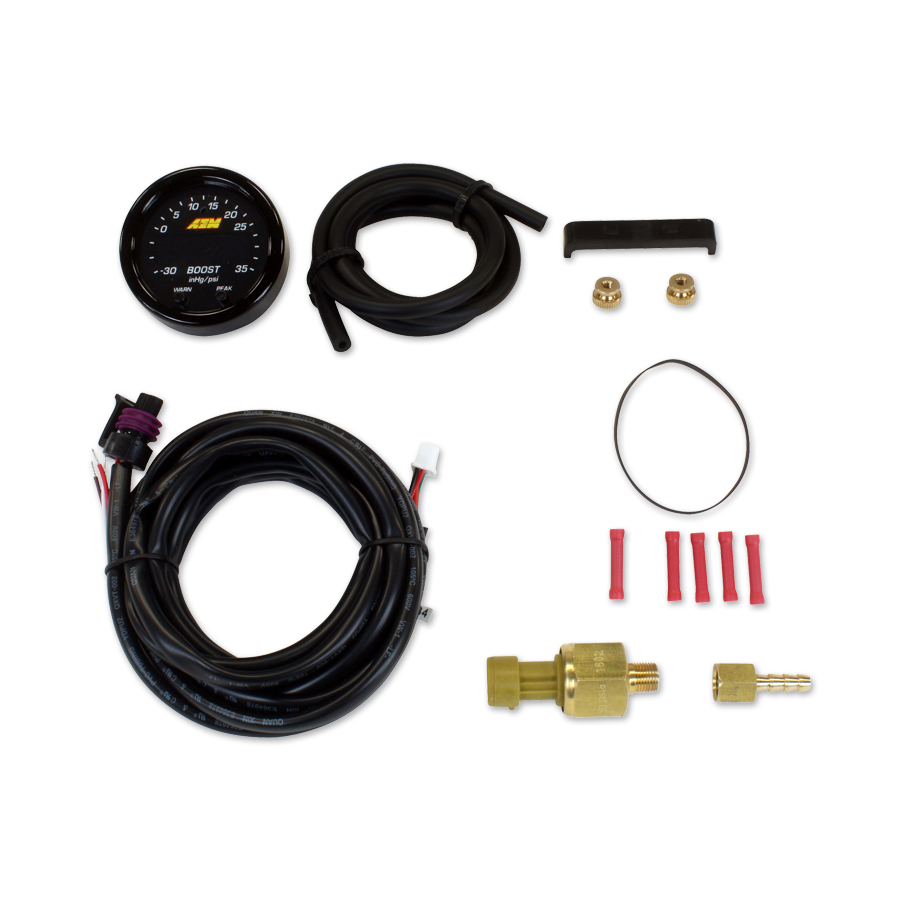

Includes: X-Series Boost Pressure Gauge,  50psia / 3.5 bar sensor, Wiring Harnesses, Black Bezel & Black Faceplate & Vacuum Hose


Additional Information

Weight .9 lbs
Dimensions 5.5 × 5.5 × 5.5 in


  • Universial
