GrimmSpeed Electronic Boost Control Solenoid 3-Port – 15-21 WRX/FA20

GrimmSpeed Electronic Boost Control Solenoid 3-Port – 15-21 WRX/FA20

$169.00

If you’ve been in the Subaru game for long, you’re probably well aware that a 3-port Electronic Boost Control Solenoid (EBCS) is considered by most to be a ‘must have’ improvement before having your car tuned. GrimmSpeed has become the trusted brand in the EBCS market, with tens of thousands of solenoids in operation today across the globe.




In stock

FREE SHIPPING ON ORDERS OVER $100

SKU: 057041 Categories: , , , Tag:

Description

An Elegantly-Engineered Solution.

The 2015-21 WRX offers a unique change of pace, as the factory 2-port solenoid is mounted directly to the plastic turbo inlet and interfaces with an o-ringed feature, rather than a vacuum hose. With expertise in designing machined parts and a tried and true boost control solenoid, we were excited to dig in and create a solution with an already proven pedigree of high performance and quality.

The advantages of a 3-port boost control system vs. the factory 2-port are readily apparent during the tuning process. The 3-port systems work by interrupting the boost signal traveling from the turbo to the wastegate. That boost is redirected back into the turbo inlet and re-ingested by the turbo using our machined adapter. This is important, as the factory Mass Airflow Sensor has already measured that air and is expecting that your motor will use it during combustion, rather than venting it to the atmosphere. The factory configuration simply ‘bleeds’ the signal from between the turbo and wastegate, which creates a system that is a bit less complex, but reacts more slowly and with less precision.


Quick Specs

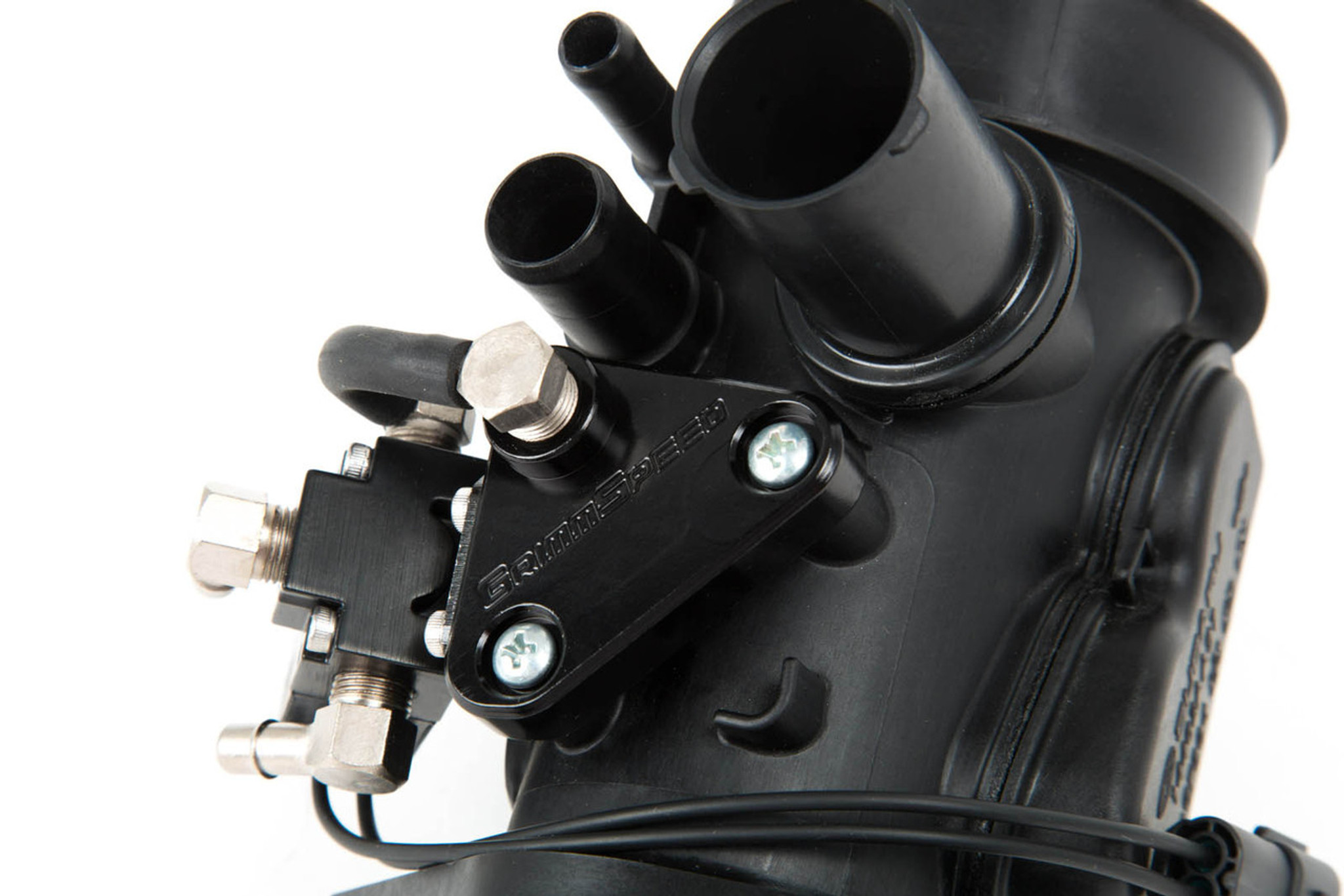

  • Custom Machined Adapter – Makes use of the factory inlet port, sealed w/ VITON O-Ring
  • Black Anodized Finish – Protects the assembly from corrosion in an extremely demanding environment
  • 1/4in Barbed Fittings – Zinc plated, sizing matches the factory turbo and included hoses
  • 3-Port Solenoid – Proprietary internal modifications prepare the solenoid for extreme automotive conditions
  • Custom Wiring Connector – Plugs directly into the OEM wiring harness with no modification or splicing required

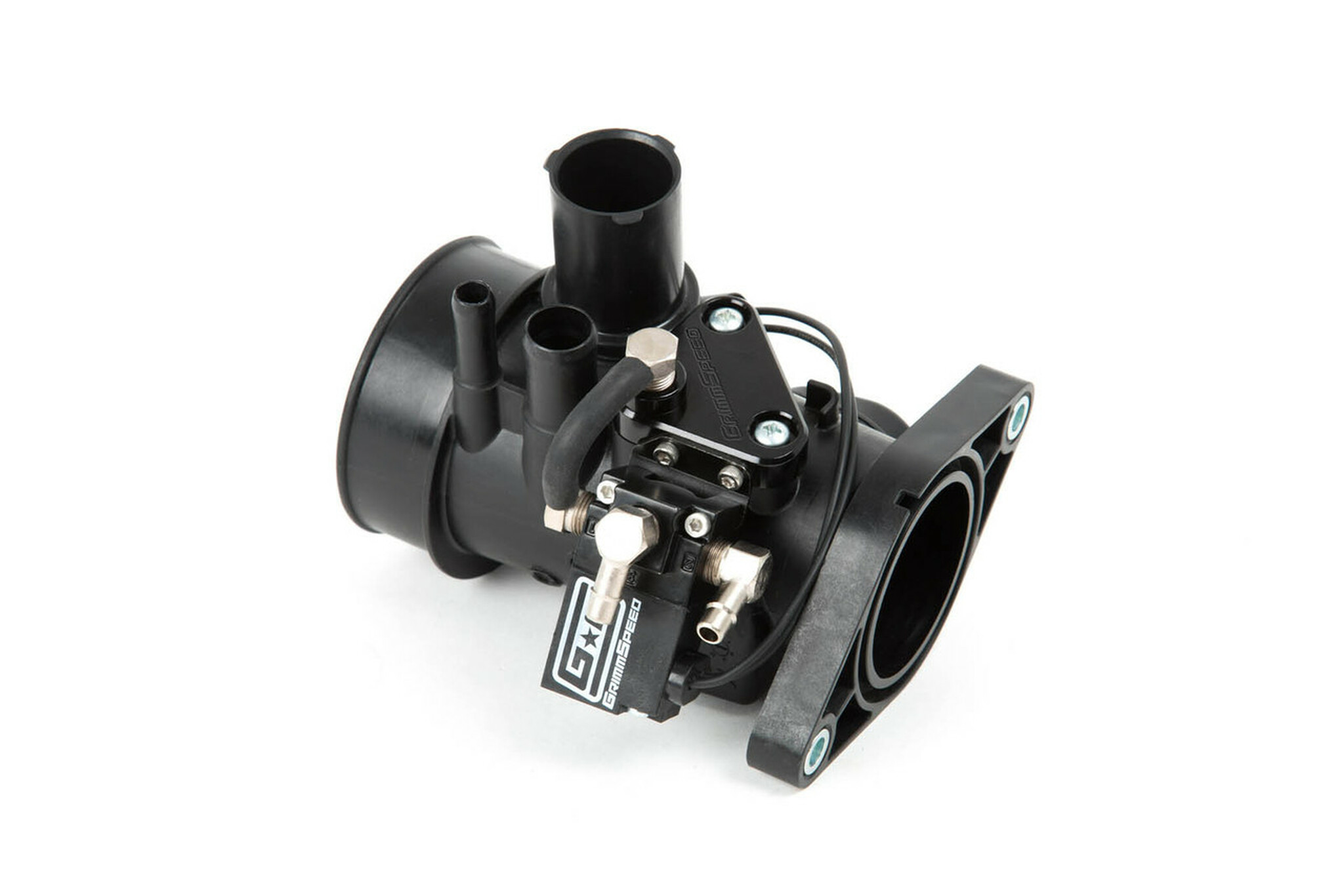

  • Compact Design – Mounts directly in factory location w/ included adapter and zinc-plated steel bracket
  • Requires Tuning



Additional Information

Weight1 lbs
Dimensions7.6 × 5.3 × 2.7 in

Compatibility

  • 2015-2021 WRX



Installation Guide

Install Guide
