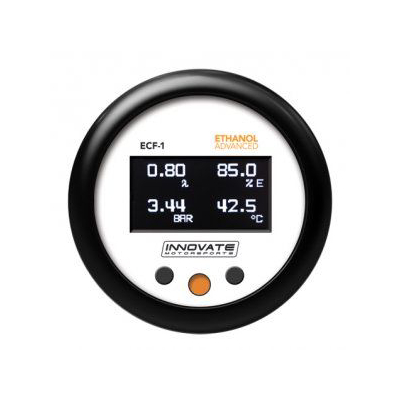

Innovate ECF-1 (Fuel) Ethanol Advanced Complete Gauge Kit

Innovate ECF-1 (Fuel) Ethanol Advanced Complete Gauge Kit


The Ethanol Advanced gauges combine Innovate Motorsports’ patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand! Includes Innovate MTS serial comms for use with MTS enabled devices to add additional logging channels for analysis with powerful LogWorks PC software.


In stock

This product may not be available for local pick-up. Contact us for more details.


Authorized Dealer


Quick Specs

  • 0-145 PSI[10BAR] Fuel Pressure Sensor
  • 100 pct. Digital Wideband Air/Fuel Ratio Technology
  • 4-Configurable Analog Outputs
  • 52mm [2-1/16 in.] Dia. Gauge w/Interchangeable Faceplate/Bezel
  • Bosch™ LSU 4.9 Wideband O2 sensor
  • Four-In-One Ethanol Content; Fuel Temp; Fuel Press.; Wideband AFR
  • No PC Required For Configuration
  • OLED User Configurable Display; On Screen Error Reporting
  • Patented DirectDigital™ Wideband Sensor Control
  • Warning Indicator LED For Low Fuel Pressure[User Programmable]


  • Fuel Pressure – 0-145 PSI[10BAR]
  • Ethanol Content – 0 – 100% /
  • Fuel Temp – -40 – 257 °F (-40 – 125°C)
  • AFR – 7.4:1 – 22.4:1 AFR (0.5 – 1.5 LAMBDA)

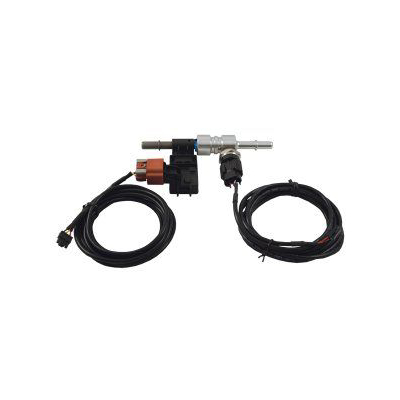

Includes: Gauge (Black Faceplate, Black Bezel), Silver Bezel & White Faceplate, Harness, Ethanol Sensor, Bosch™ LSU 4.9 Wideband O2 sensor, Fuel Pressure Sensor, Program Cable (Serial), Quick Start Installation Guide.


Additional Information

Weight 2.6 lbs
Dimensions 10.8 × 7.4 × 2.9 in


  • Universial
