Innovate ECB-1 (Boost) Ethanol Advanced Complete Gauge Kit

Innovate ECB-1 (Boost) Ethanol Advanced Complete Gauge Kit

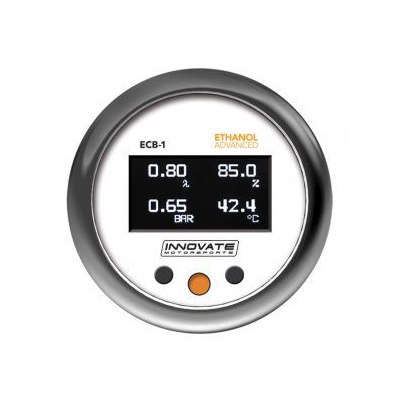

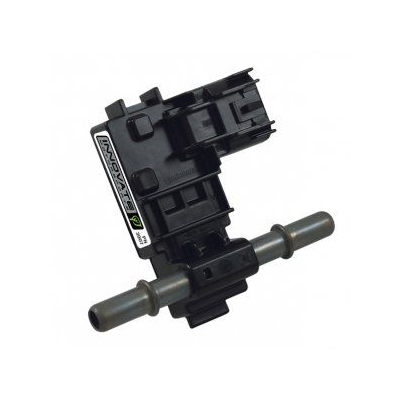

The Ethanol Advanced gauges combine Innovate Motorsports’ patented DirectDigital™ O2 sensor control technology with application specific sensors, an OLED display, and a sophisticated ethanol content sensor that also measures fuel temperature. These capabilities allow the user to monitor and capture critical metrics for accurate and reliable tuning while operating with high ethanol content fuel. The Ethanol Advanced gauges offer the looks, safety and performance enthusiasts demand! Includes Innovate MTS serial comms for use with MTS enabled devices to add additional logging channels for analysis with powerful LogWorks PC software.


In stock



Quick Specs

  • 3-Configurable Analog Outputs

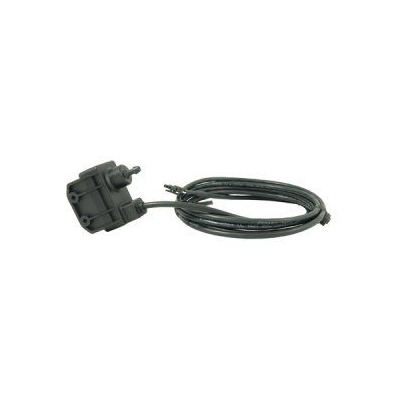

  • 4 BAR MAP Sensor; Pressure Range: -29inHG to 43.5PSI; -1 to 3 BAR
  • 52mm [2-1/16 in.] Dia. Gauge Body
  • Boost Vision; Real-Time Calculated Approx. Of ECUs Boost Limit
  • Bosch™ LSU 4.9 Wideband O2 sensor
  • Four-In-One Ethanol Content; Fuel Temp; Boost Press.; Wideband AFR
  • Interchangeable Bezels; Black and Silver Included
  • Interchangeable Faceplates; Black and White Included
  • OLED Configurable Display[One; Two; or Four Channel Viewing Mode]
  • Patented DirectDigital™ Wideband Sensor Control


  • Boost – 29 inHG – 43.5 PSI (-1 to 3 BAR)
  • Ethanol Content – 0 – 100% /
  • Fuel Temp – -40 – 257 °F (-40 – 125°C)
  • AFR – 7.4:1 – 22.4:1 AFR (0.5 – 1.5 LAMBDA)


Includes: Gauge (Black Faceplate, Black Bezel), Silver Bezel & White Faceplate, Harness, Ethanol Sensor, Bosch™ LSU 4.9 Wideband O2 sensor, 4 BAR MAP Sensor
Program Cable (Serial), Quick Start Installation Guide.


Additional Information

Weight 2.6 lbs
Dimensions 10.8 × 7.4 × 2.9 in
