AEM X-Series 60psi Boost Pressure Gauge

Sale!

AEM X-Series 60psi Boost Pressure Gauge

$286.95

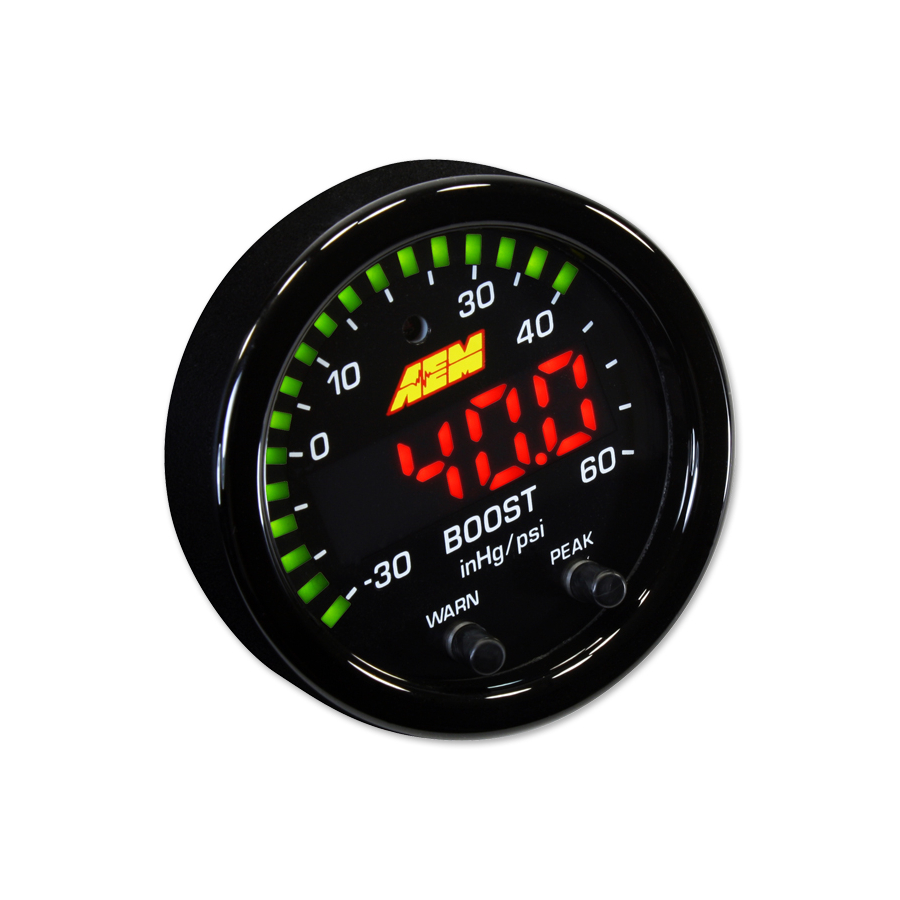

AEM’s X-Series -30in/Hg~60PSI / -1~4BAR Digital Boost Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 60 PSI or 4 BAR in their high performance vehicle.



This product may not be available for local pick-up. Contact us for more details.

$

FREE SHIPPING ON ORDERS OVER $199

Description


Quick Specs

  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
  • Programmable center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter

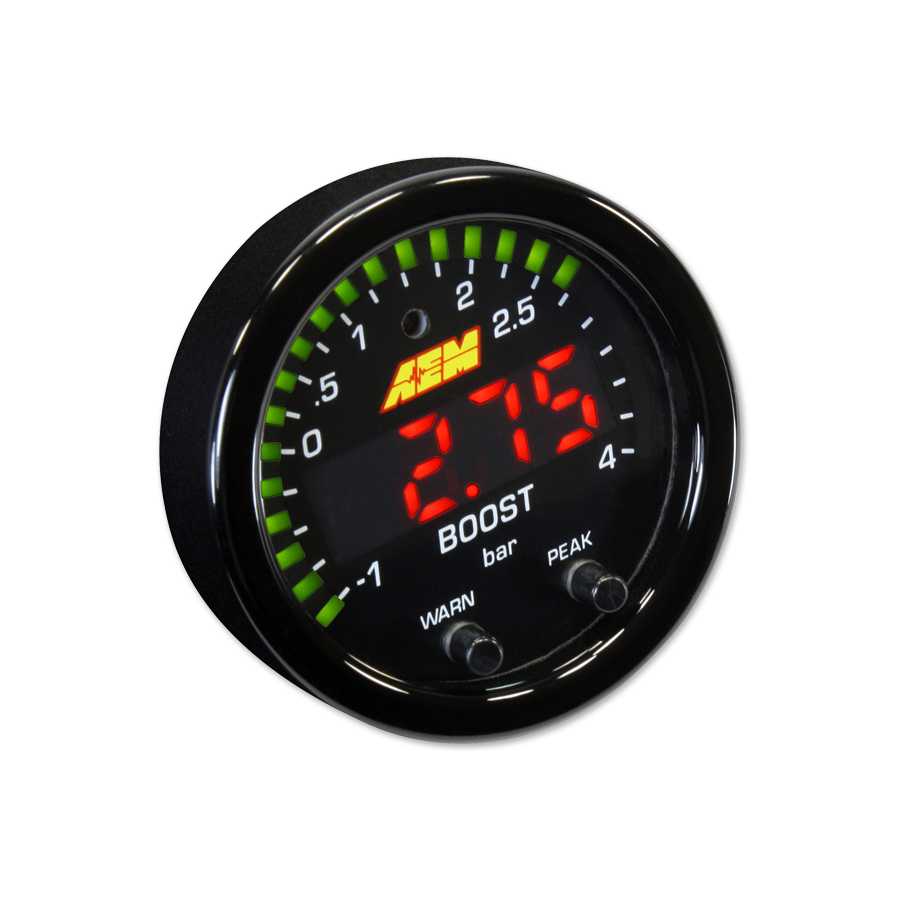

  • User selectable standard or metric display ( -30in/Hg~60PSI / -1~4BAR)
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings (excl. Volts)

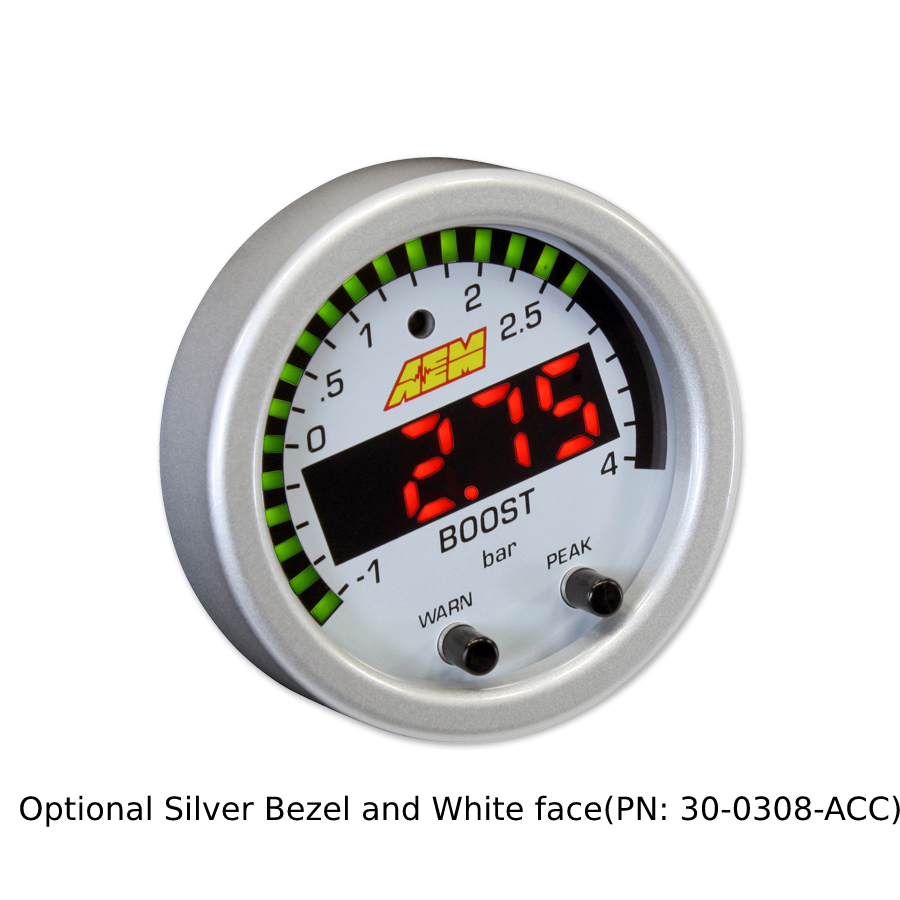

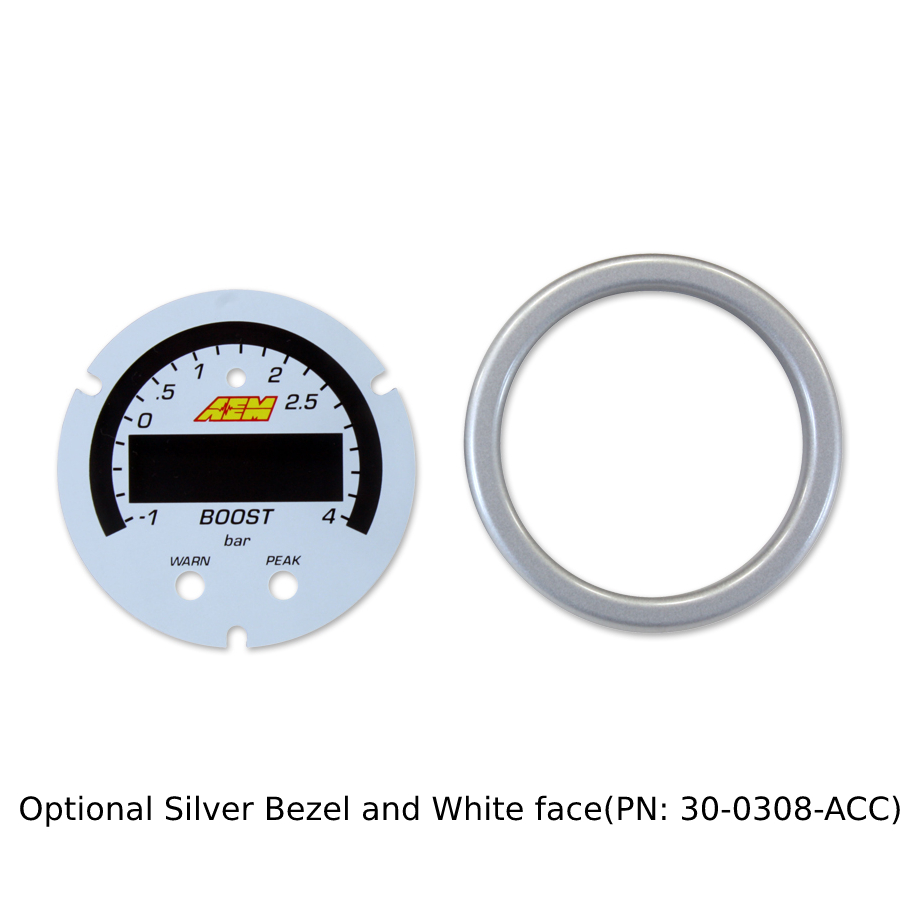

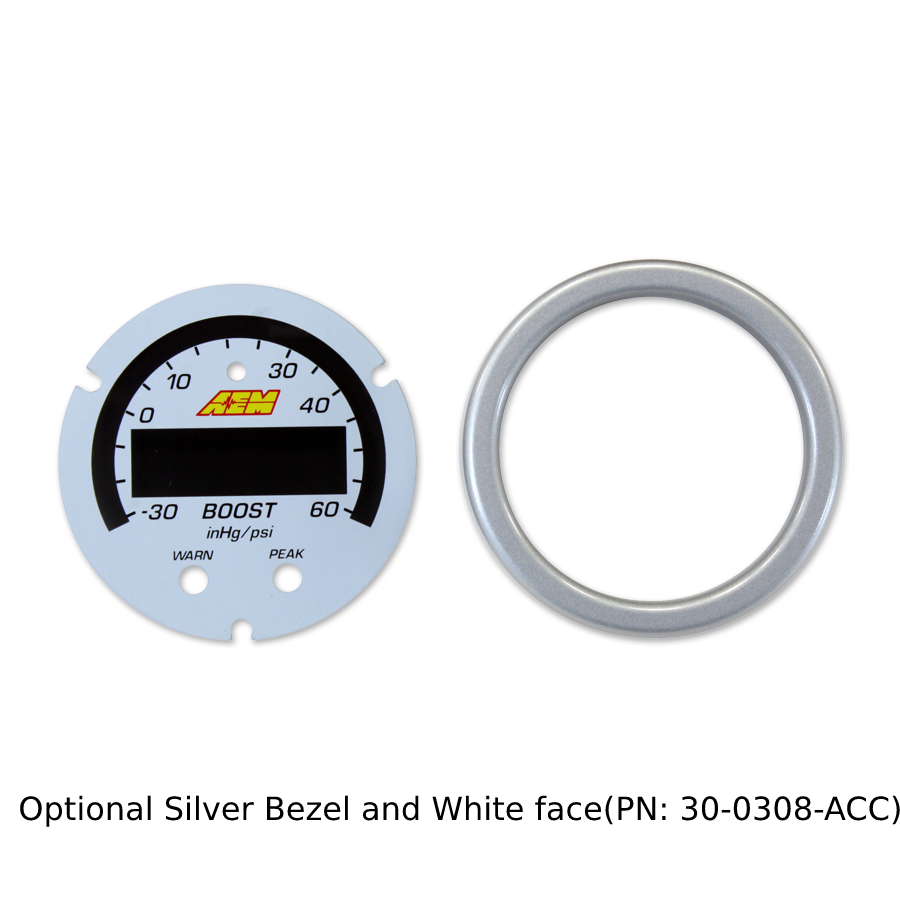

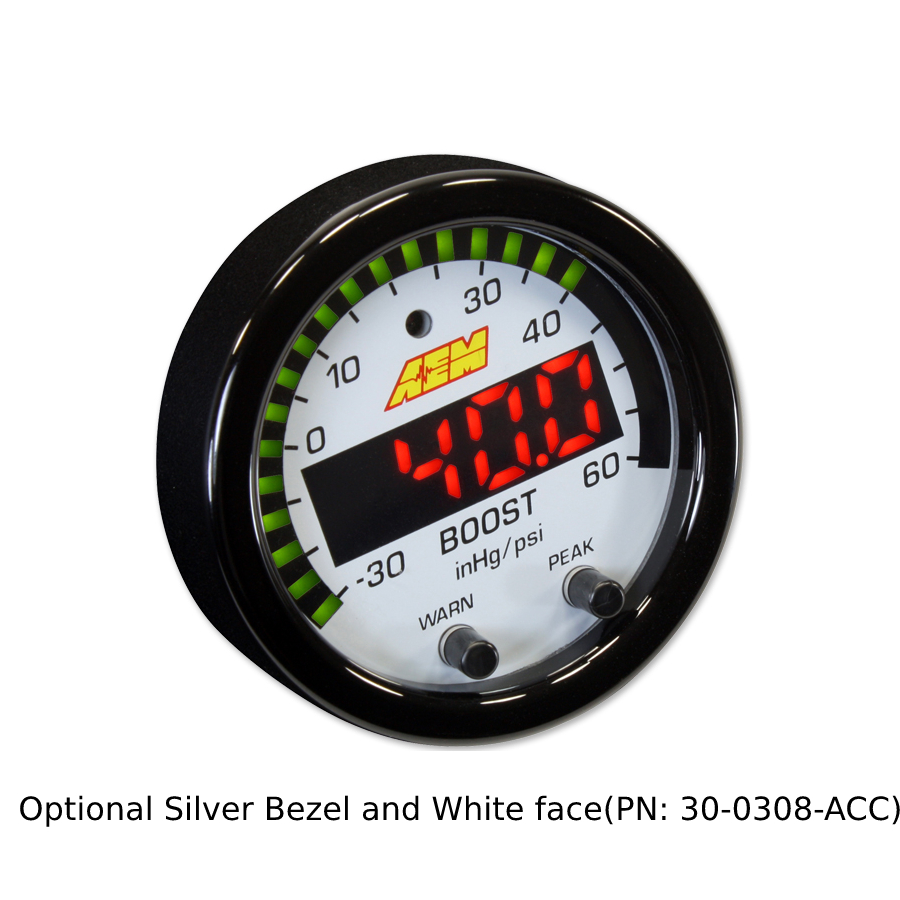

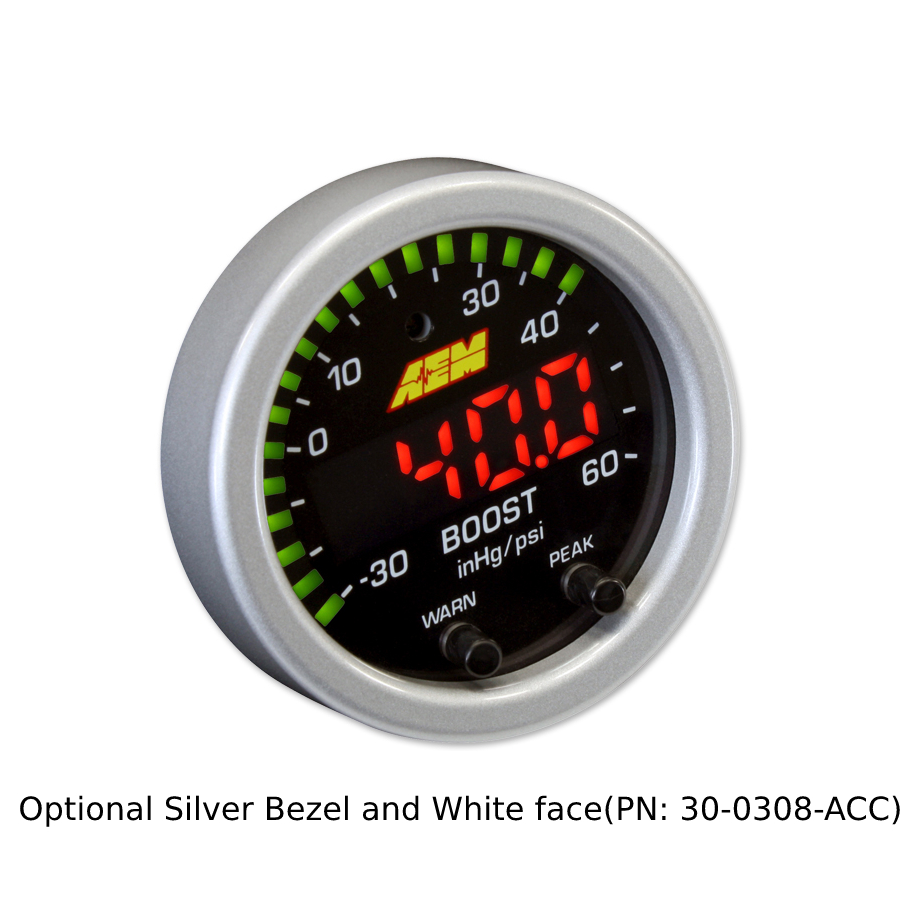

  • Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection

RANGE

  • Boost Pressure ( -30in/Hg~60PSI / -1~4BAR)

KITS INCLUDE

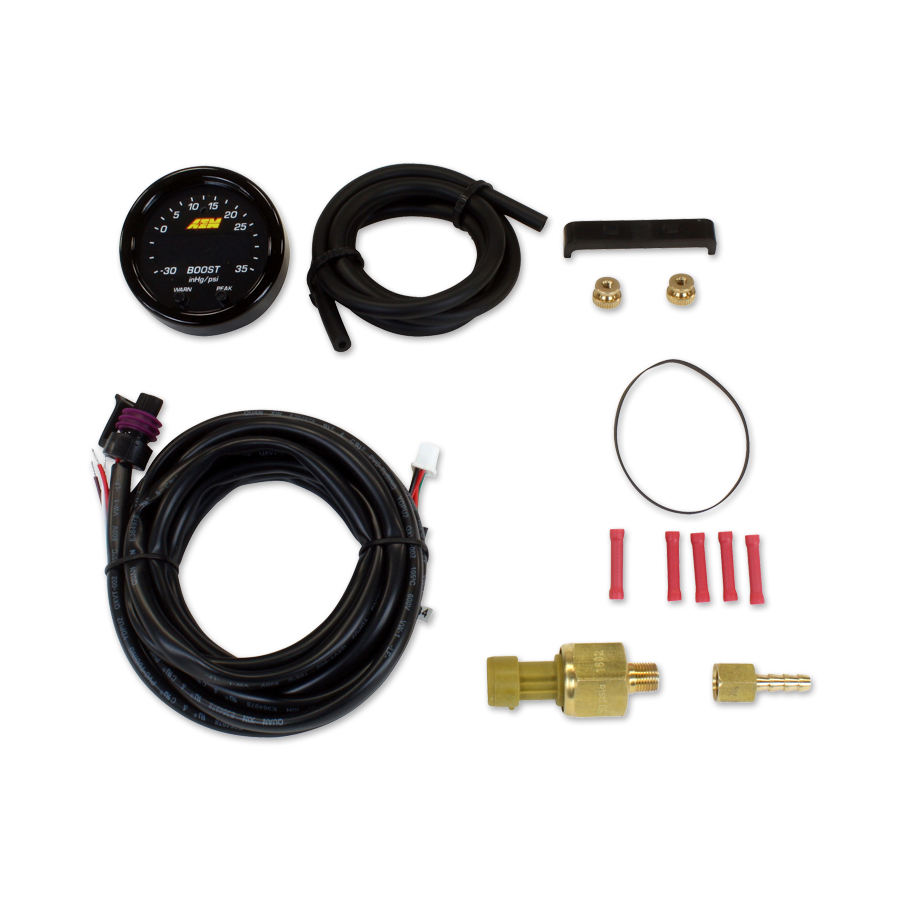

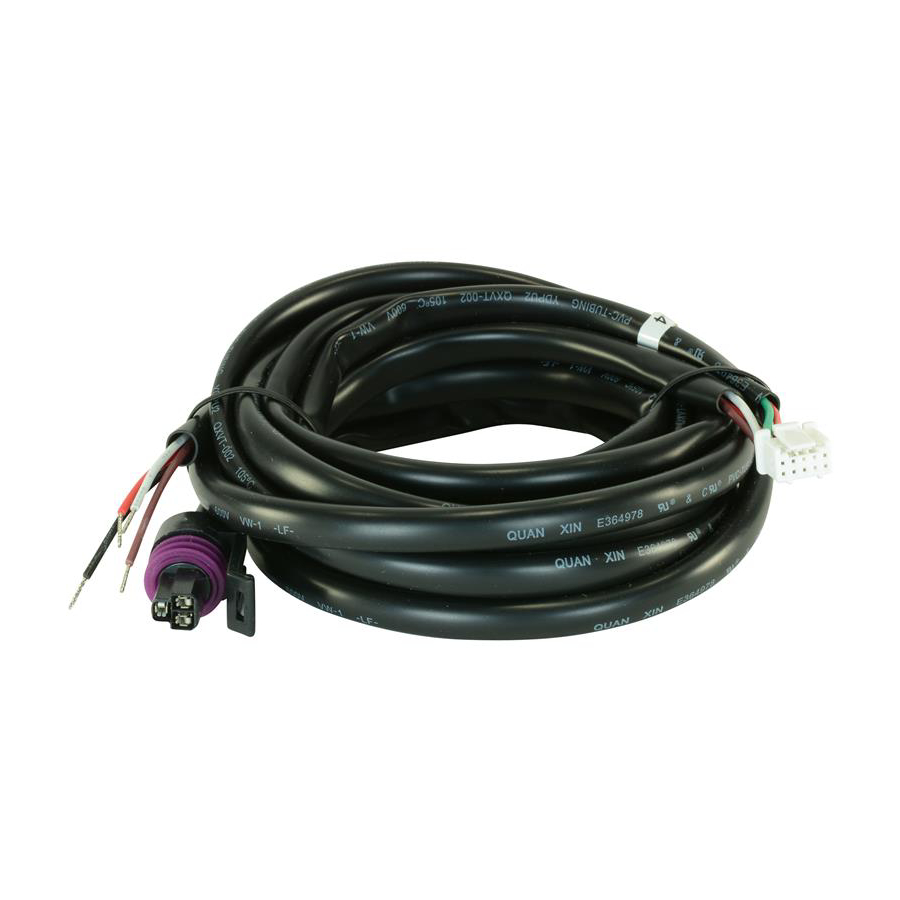

Includes: X-Series Boost Pressure Gauge,  75psia / 5 bar sensor, Wiring Harnesses, Black Bezel & Black Faceplate & Vacuum Hose



Additional Information

Weight .9 lbs
Dimensions 5.5 × 5.5 × 5.5 in

Compatibility

  • Universial
