AEM X-Series 0-100 Oil/Fuel Pressure Gauge


AEM X-Series 0-100 Oil/Fuel Pressure Gauge

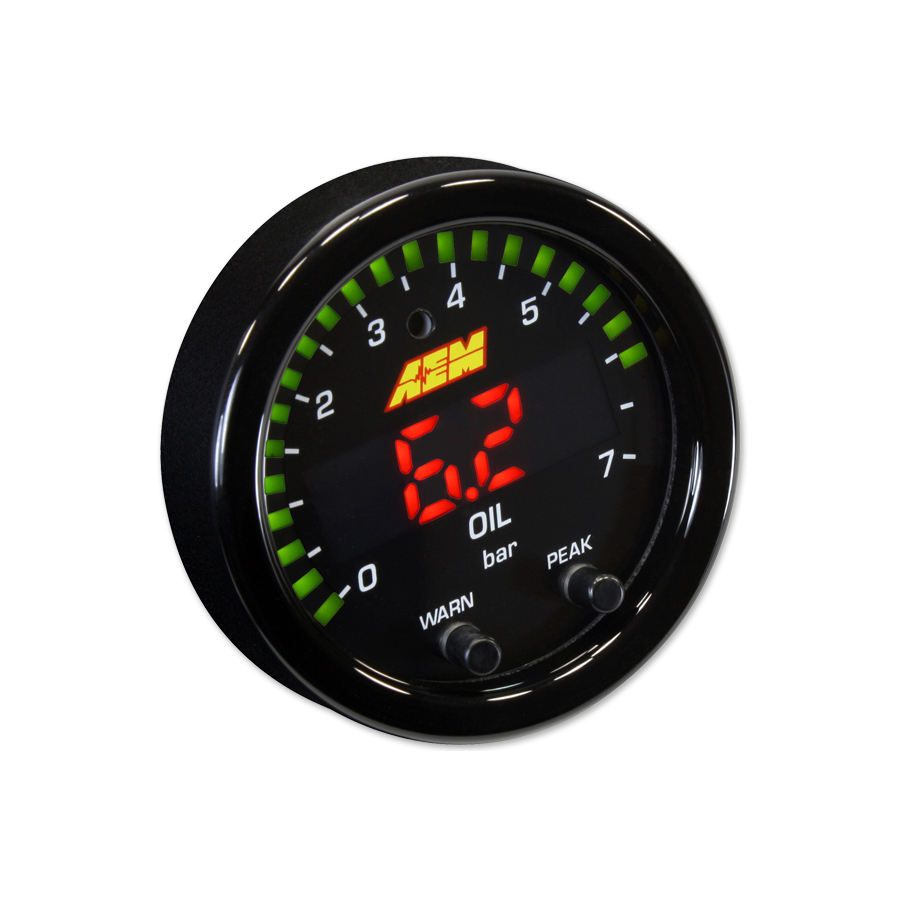

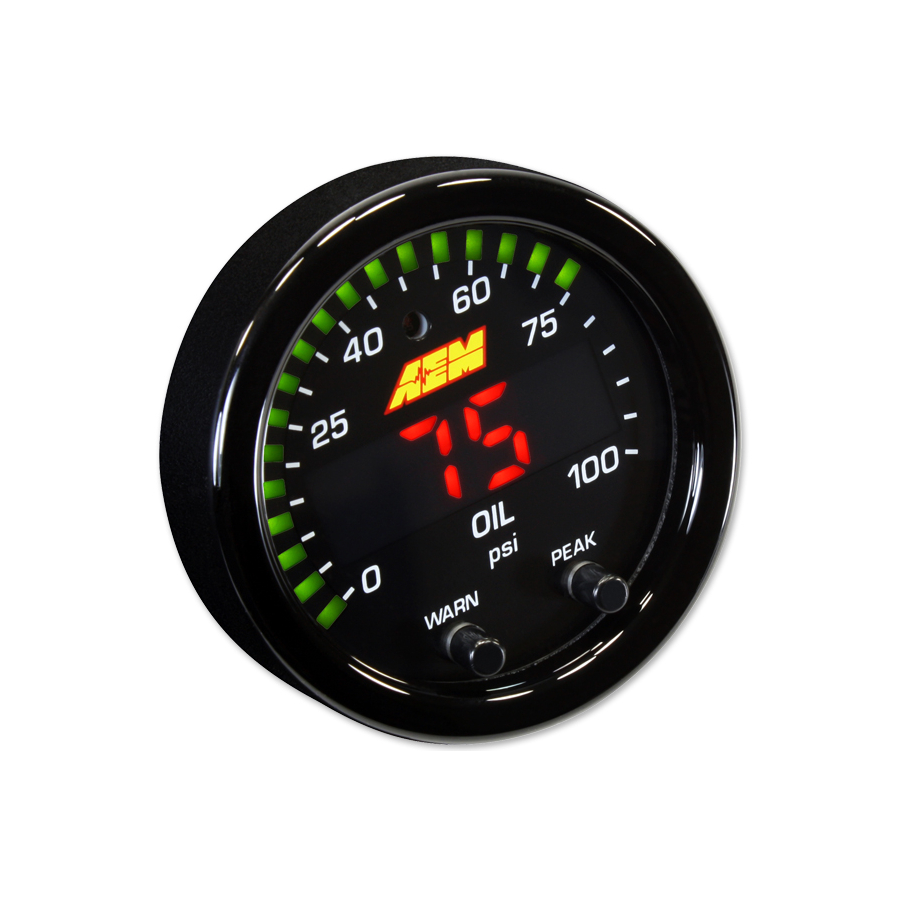

AEM’s X-Series 100 PSI/7 BAR Digital Oil/Fuel Pressure gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate oil or fuel pressure readouts in their high performance vehicle.


In stock

This product may not be available for local pick-up. Contact us for more details.




Quick Specs

  • 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
  • Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
  • Programmable center LED is 87% larger than original AEM gauges
  • 24 green outer LEDs for quick reference to engine parameter
  • User selectable standard or metric display (0-100 PSI/0-7 BAR)
  • Peak/Recall via gauge face buttons
  • User selectable threshold warnings

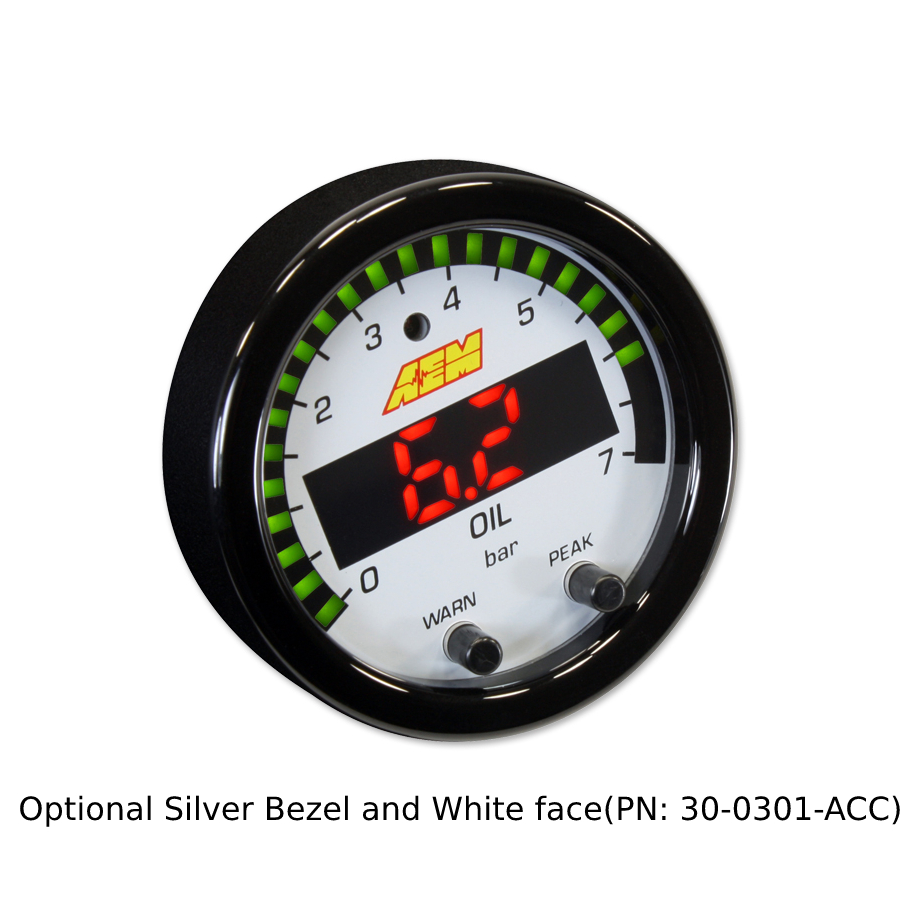

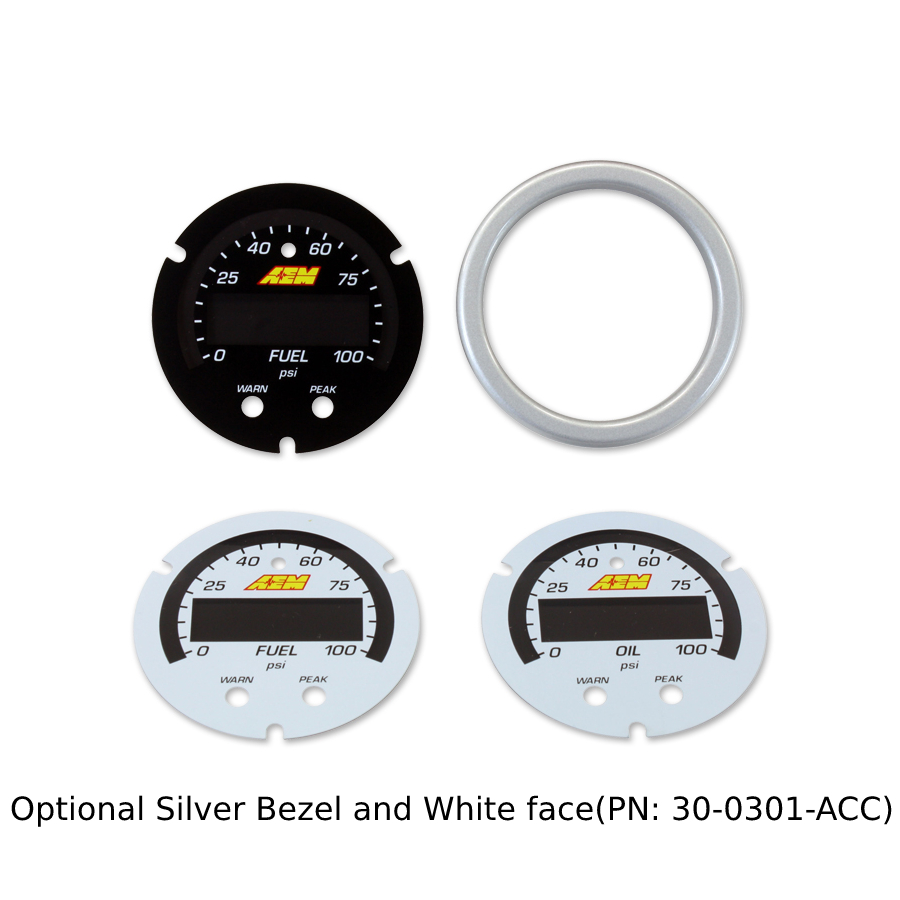

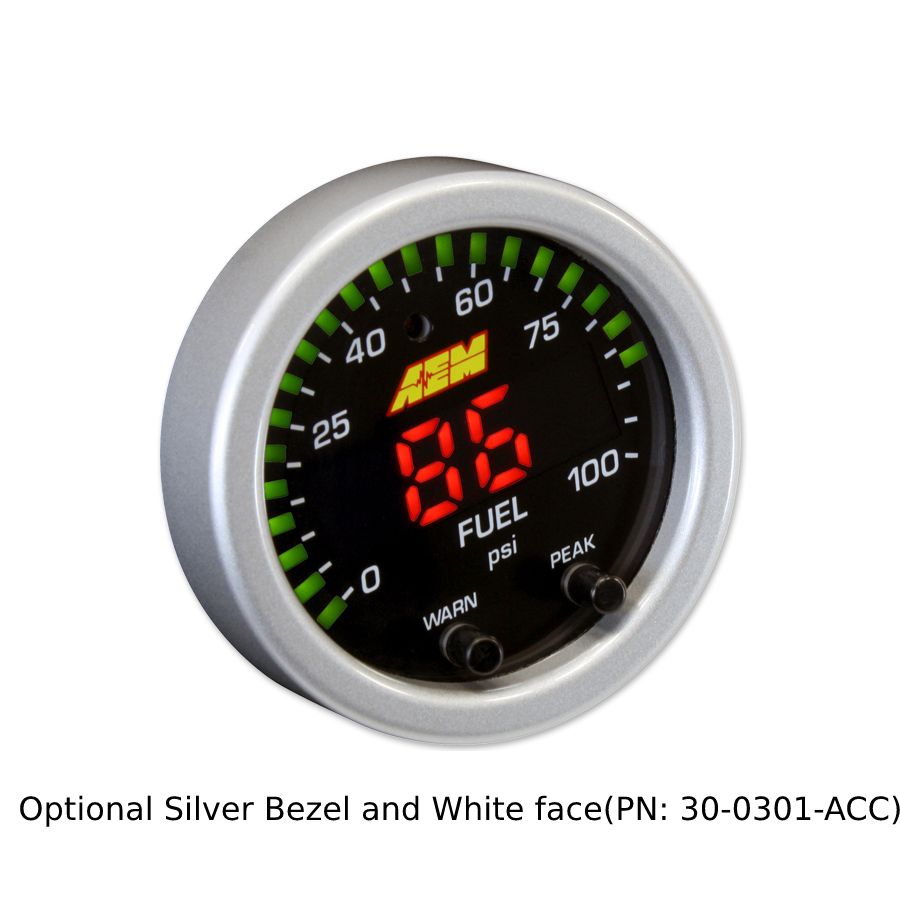

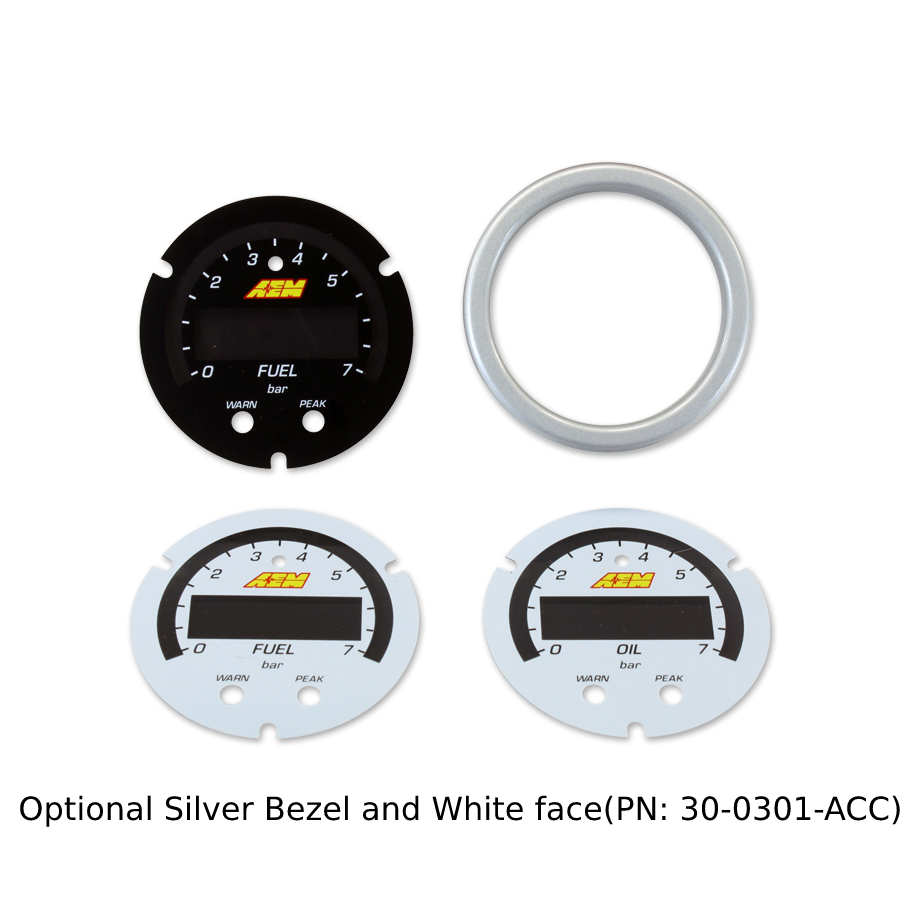

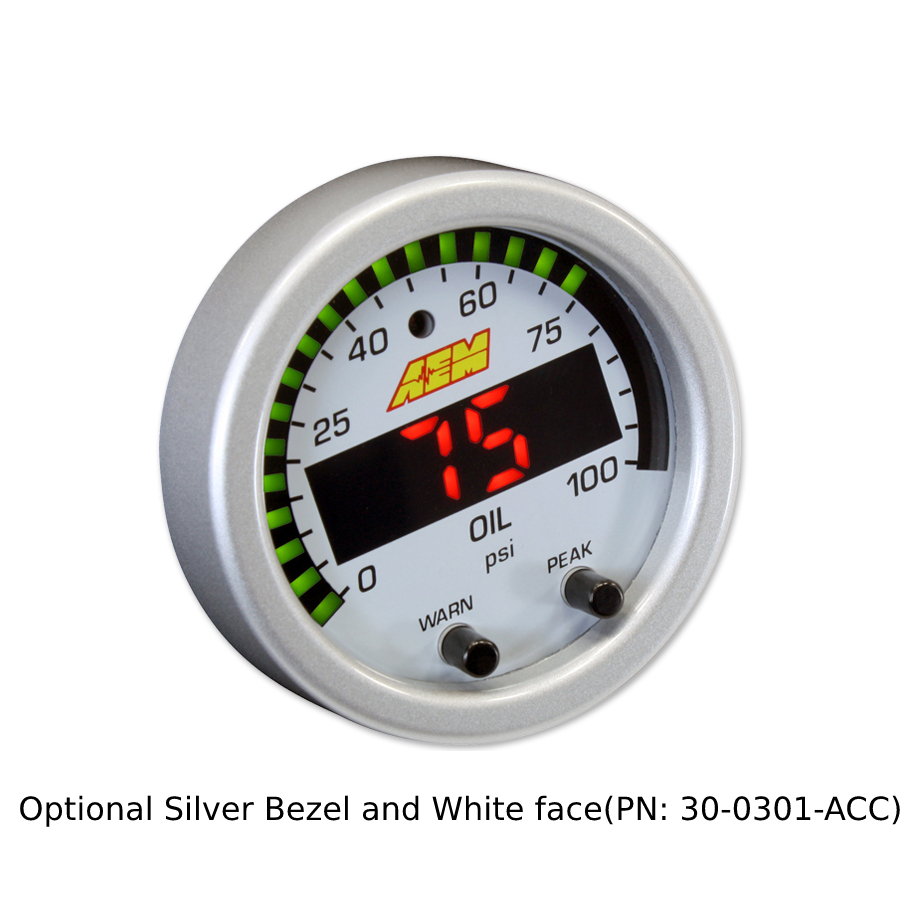

  • Optional silver bezel and faceplate accessory kits available (sold separately)
  • AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
  • 0-5v analog outputs for transmitting data to EMS or Data Logger
  • Auto dimming sensor delivers ideal display brightness
  • Positive locking connectors provide secure connection


  • Oil/Fuel Pressure (0-100 PSI/0-7 BAR)

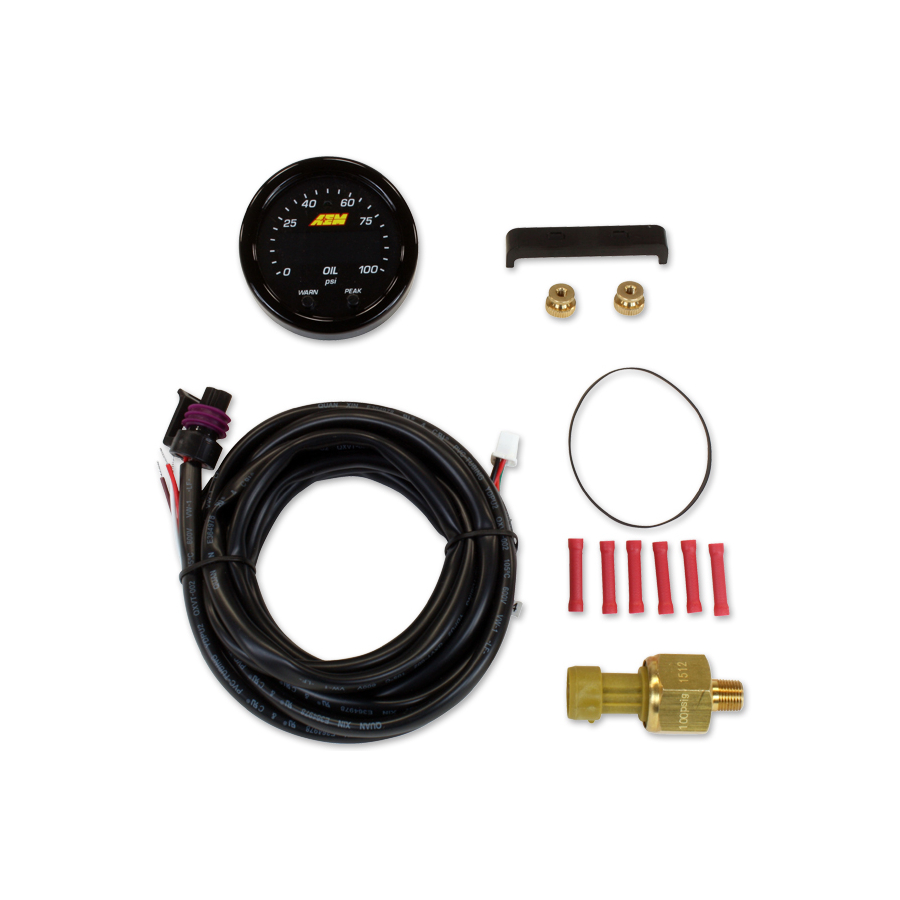

Includes: X-Series Boost Pressure Gauge,  100PSIg sensor, Wiring Harnesses, Black Bezel & Black Oil Faceplate


Additional Information

Weight .8 lbs
Dimensions 5.5 × 5.5 × 5.5 in


  • Universial
