Mishimoto Oil Cooler Kit – 2022+ WRX


Mishimoto Oil Cooler Kit – 2022+ WRX


  • Direct fit for 2022+ Subaru WRX
  • 19-row oil cooler strategically mounted in the upper grille for maximum airflow
  • Includes everything needed for installation including brackets, lines, sandwich plate, and cooler
  • Dyno-proven 20-degree reduction in oil temperature
  • Optional thermostatic sandwich plate for daily-driven vehicles or cold climates
  • Retains stock liquid-to-liquid cooler for fast warmup on daily-driven vehicles
  • Adds 0.75 qts of oil for more cooling capacity
  • Black nylon covered stainless-steel lines for added abrasion resistance and an OEM look
  • Thermostatic sandwich plate includes NPT ports for pressure or temp sensors
  • Thermostatic sandwich plate accepts 160-degree, 185-degree, and 200-degree thermostats
  • Available with Sleek Silver or Stealth Black cooler
  • Mishimoto Lifetime Warranty



Authorized Dealer


The 2022+ WRX has tons to offer with its new FA24 turbocharged engine and top-notch AWD system, but not every component lives up to the WRX’s rally pedigree. The 2022 WRX oil cooling system consists of a very small liquid-to-liquid heat exchanger that serves to heat the engine oil as much as it cools it. If you’ve modified your vehicle or spend time tracking your WRX, prolonged high oil temps can cause catastrophic failure of your FA24. Protect your investment with the Mishimoto direct-fit oil cooler kit designed specifically for the 2022+ Subaru WRX.

This 2022+ WRX performance oil cooler kit is designed to work in tandem with the stock liquid-to-liquid to maintain ideal oil temperature and alleviate stress on the primary cooling system. This kit adds 0.75-quarts of oil to the system for more cooling capacity and showed a 20-degree reduction in oil temps in dyno testing. The included 19-row oil cooler mounts in the front bumper for optimal airflow and cooling using robust application-specific brackets. This kit includes everything needed for install, including pre-assembled black nylon-covered stainless-steel lines with -10AN fittings and your choice of thermostatic or non-thermostatic sandwich plate. As with all Mishimoto products this 2022+ Subaru WRX performance oil cooler kit includes our Mishimoto Lifetime Warranty.

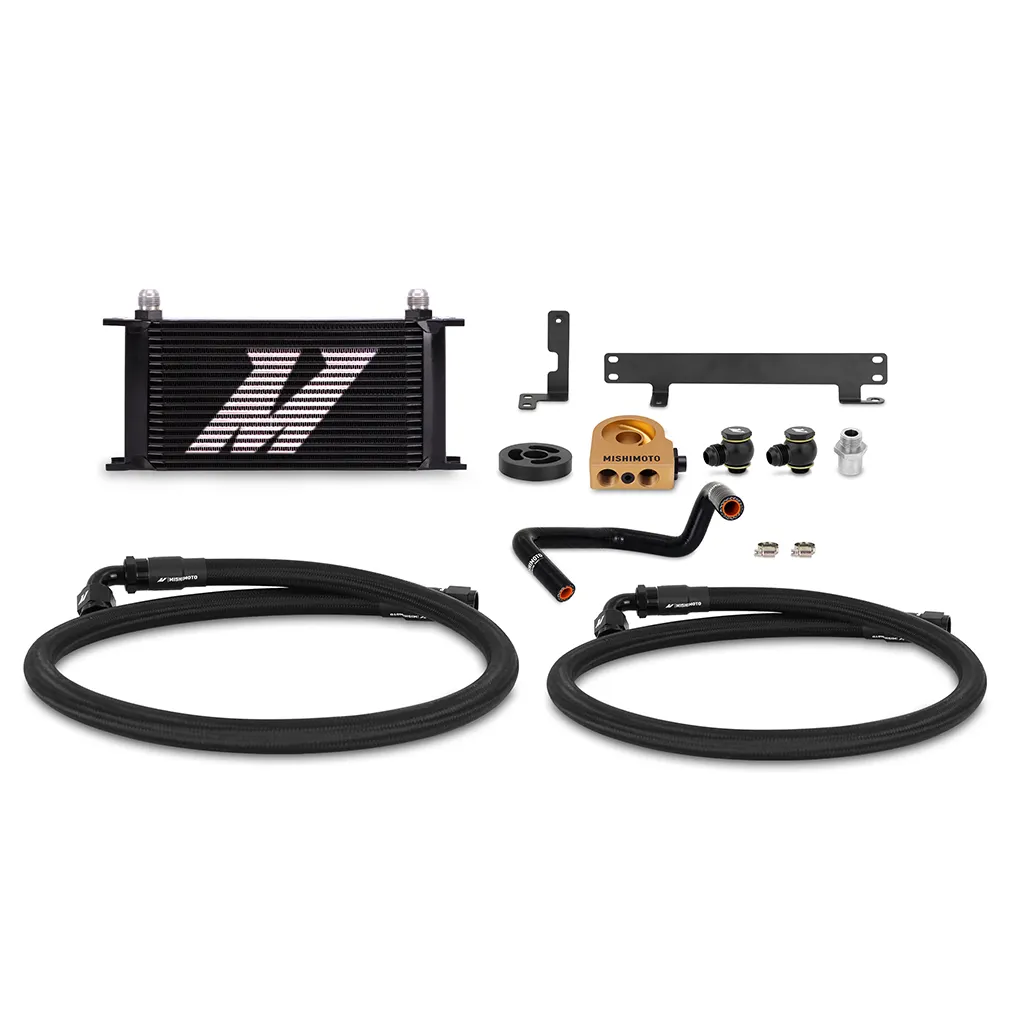

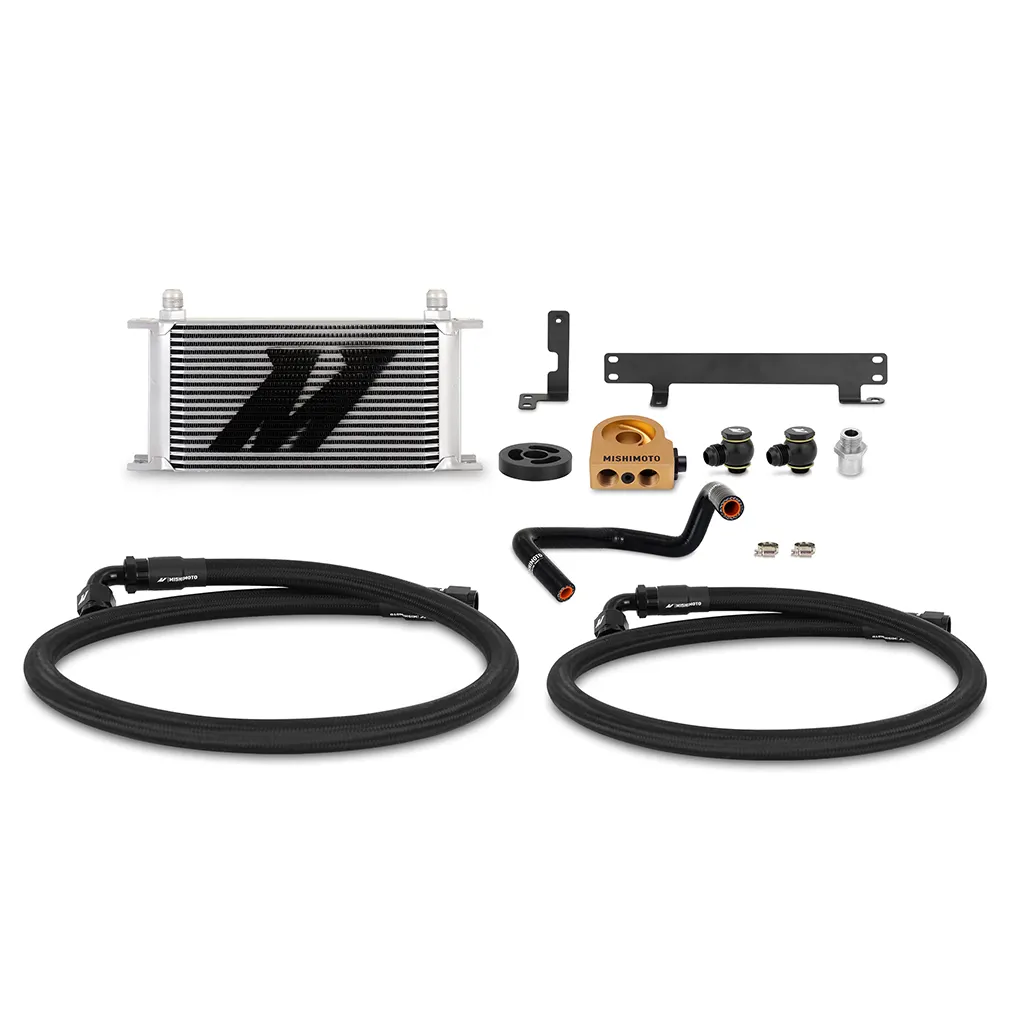

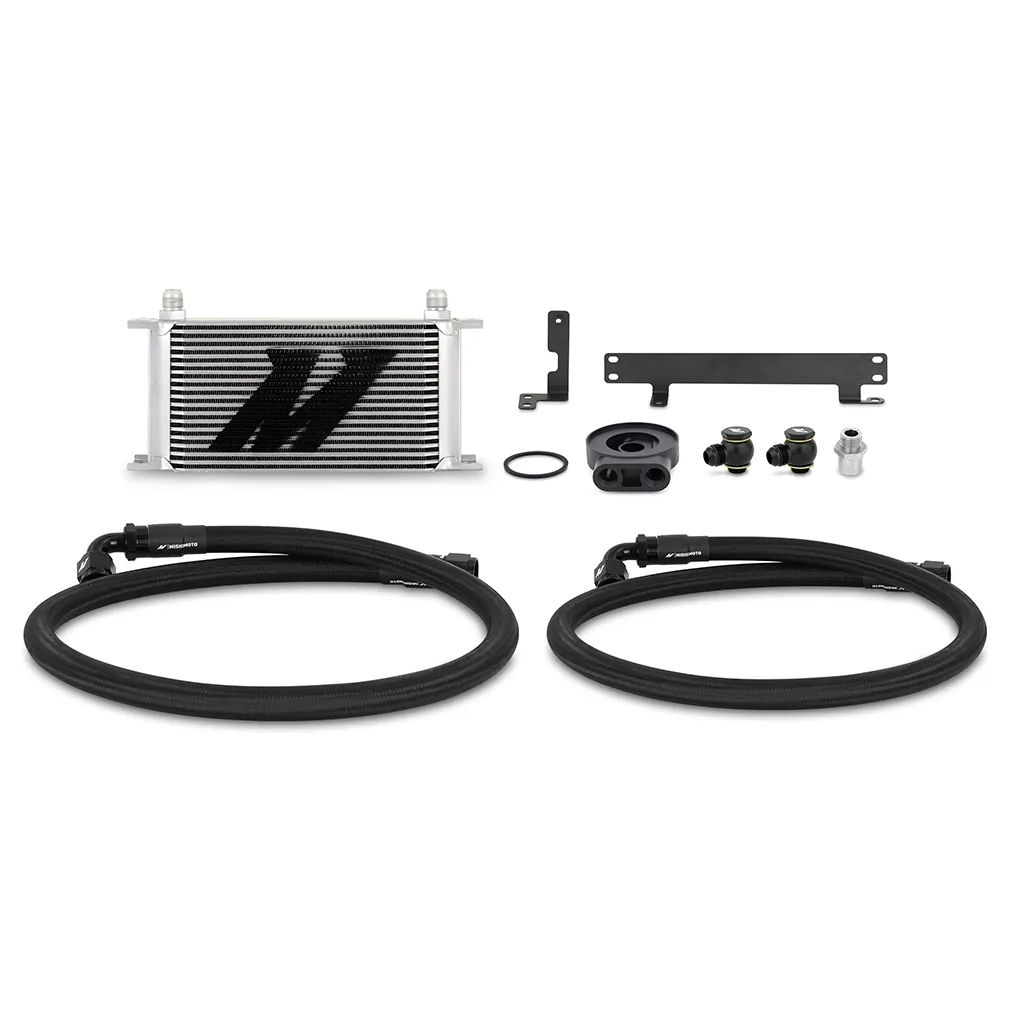

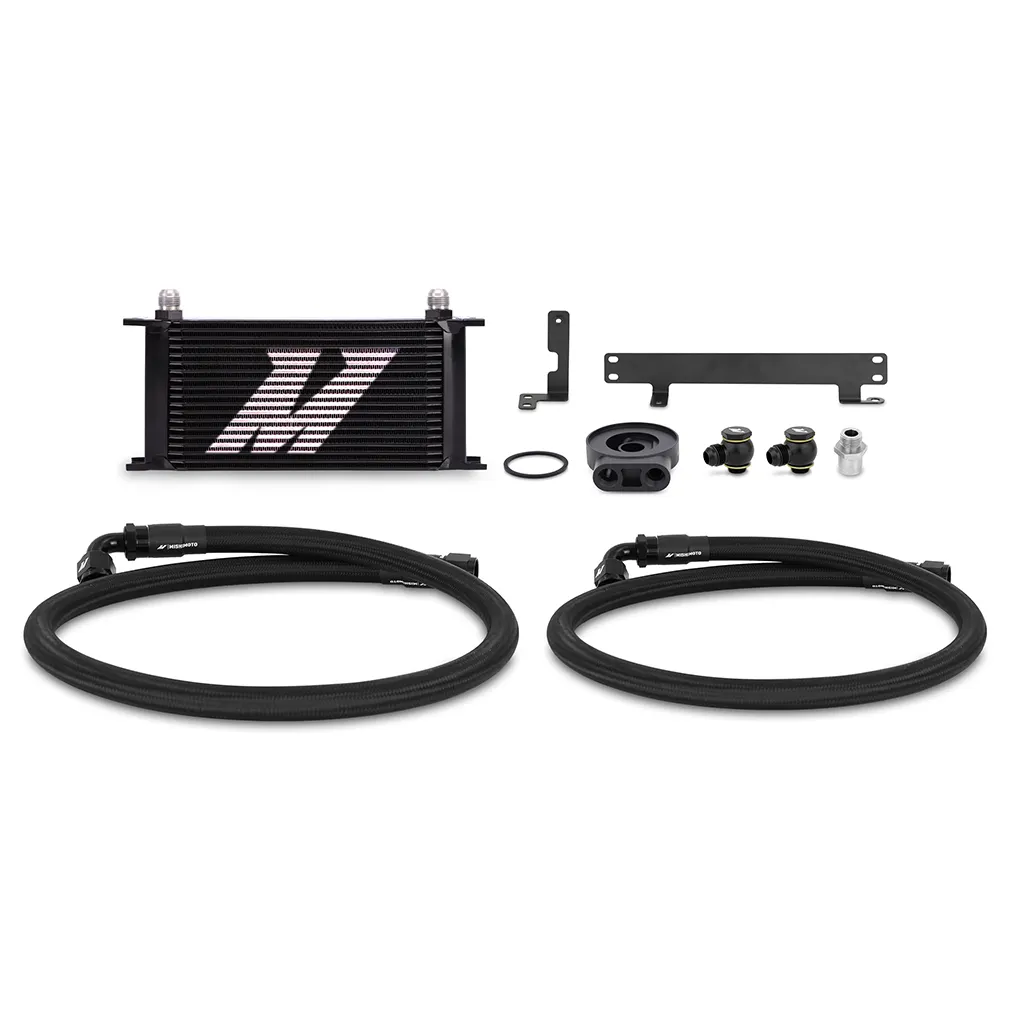

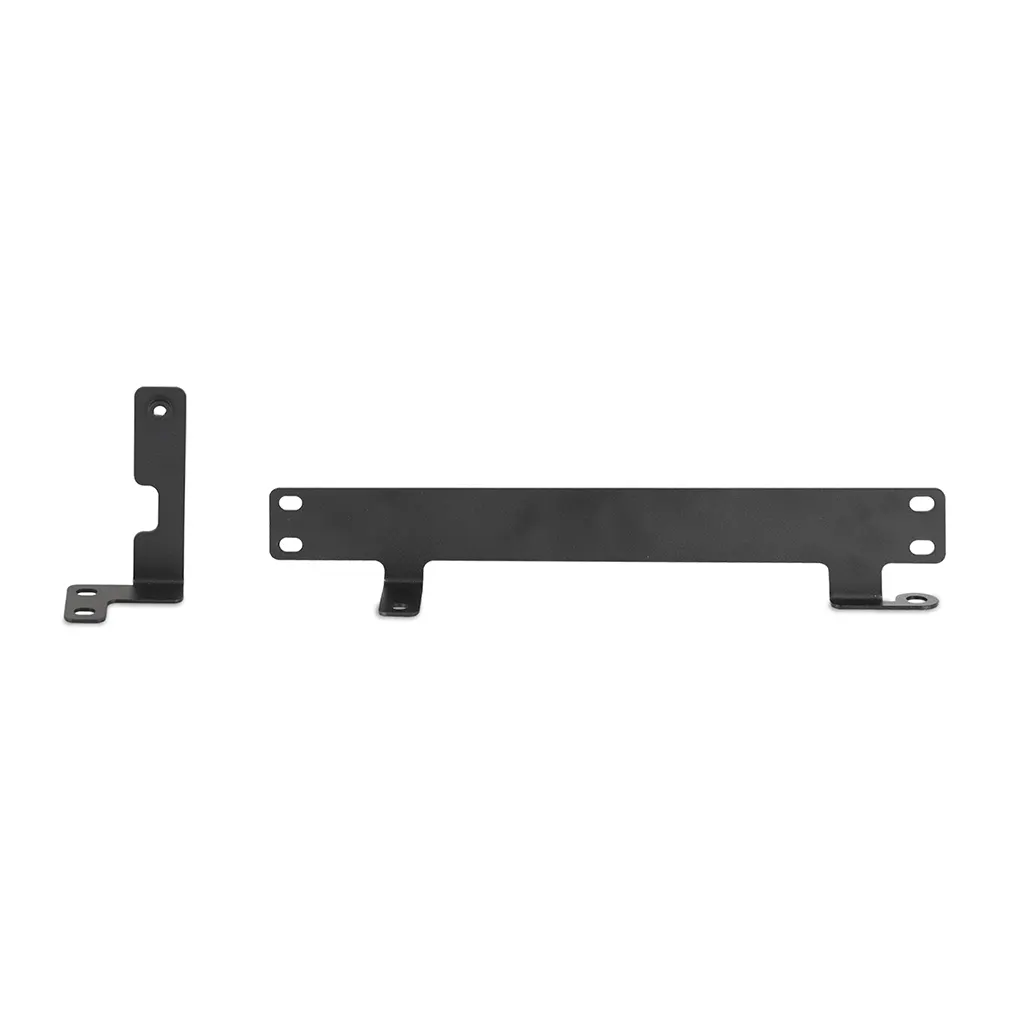

  • (2) Application-Specific Mounting Brackets

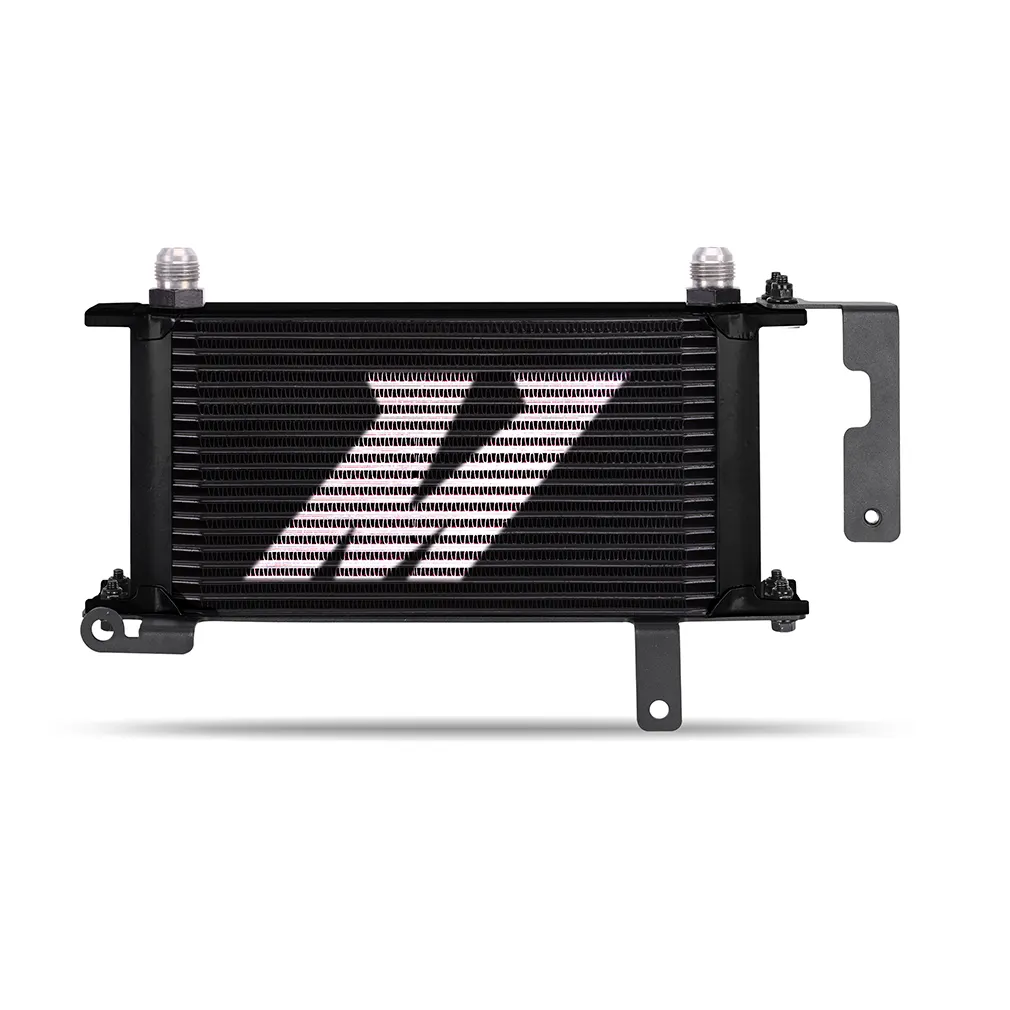

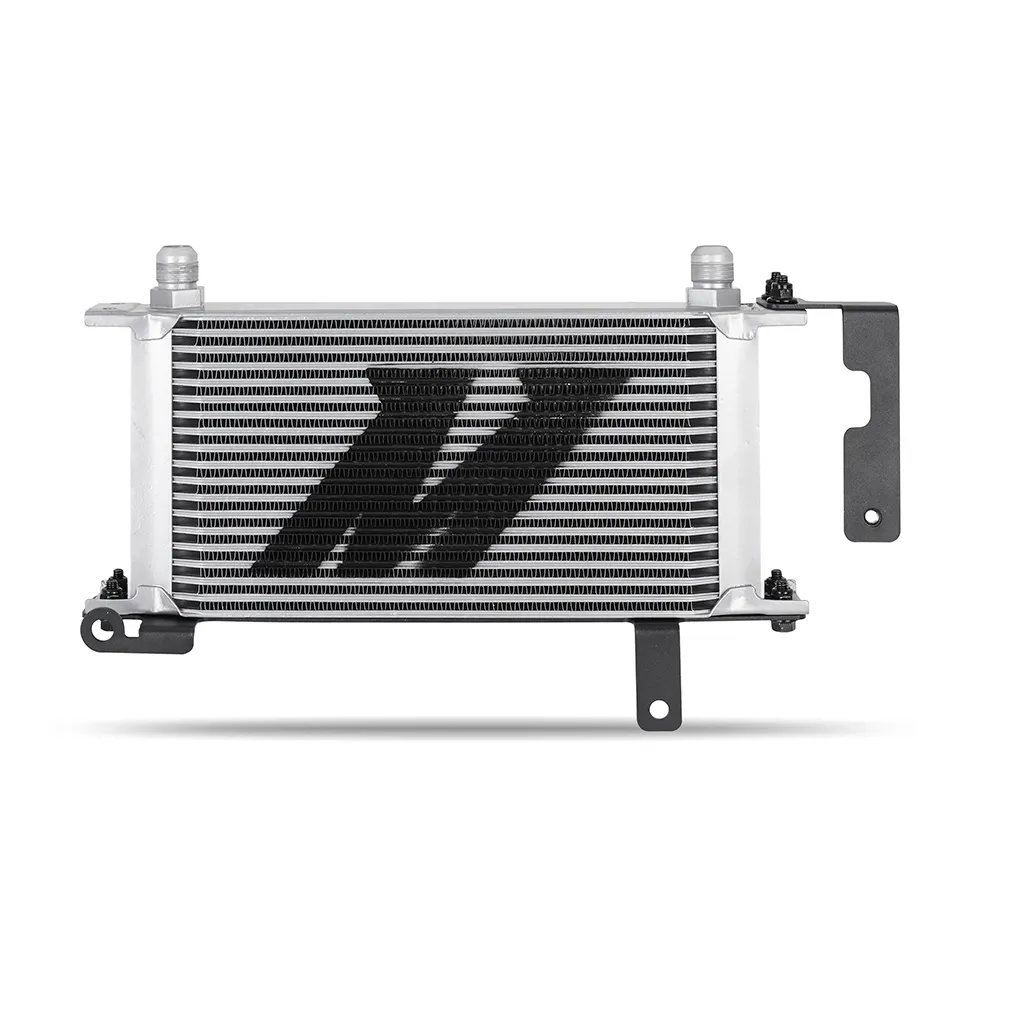

  • (1) 19-Row Oil Cooler
  • (2) Stainless-Steel Braided Hoses w/ Fittings

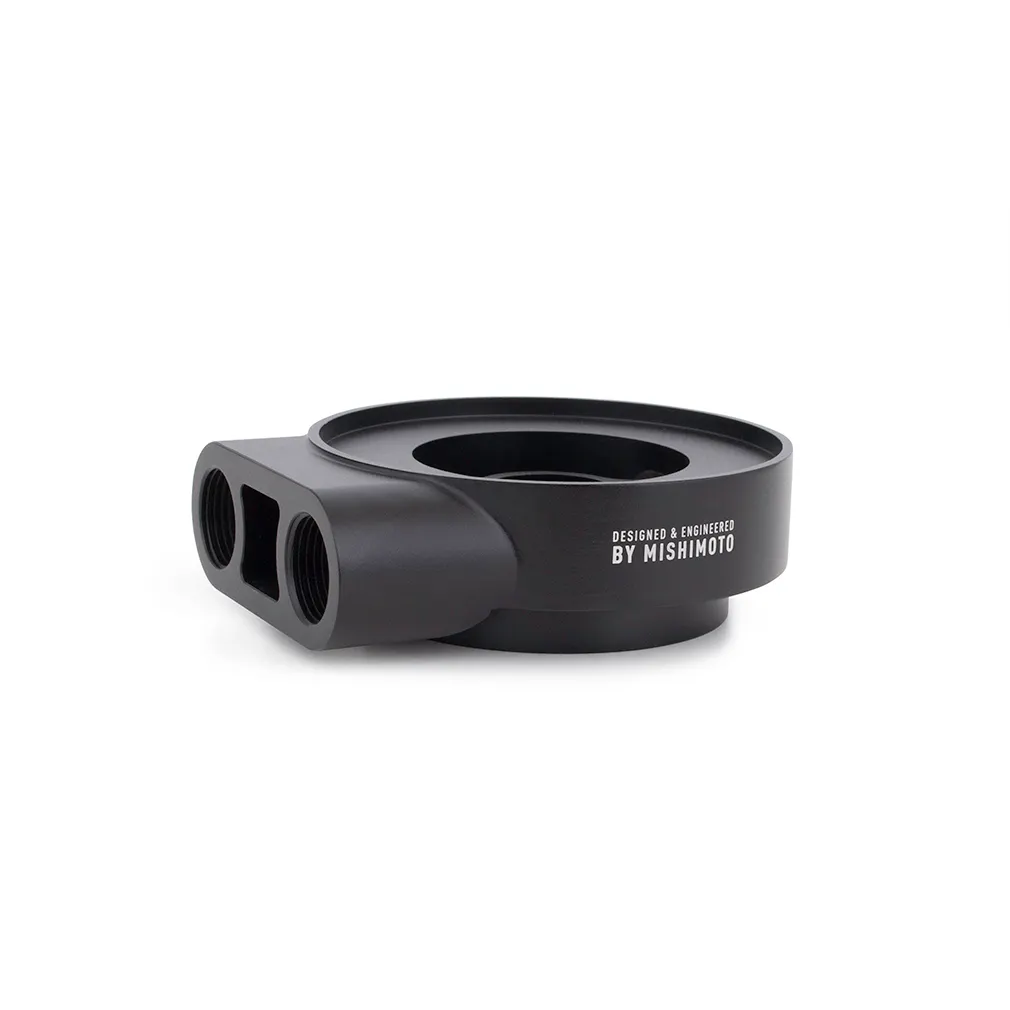

  • (1) Application-Specific Oil Sandwich Plate
  • (2) Banjo Fittings w/ Bolt–Mounting Hardware
  • Thermostatic Option:

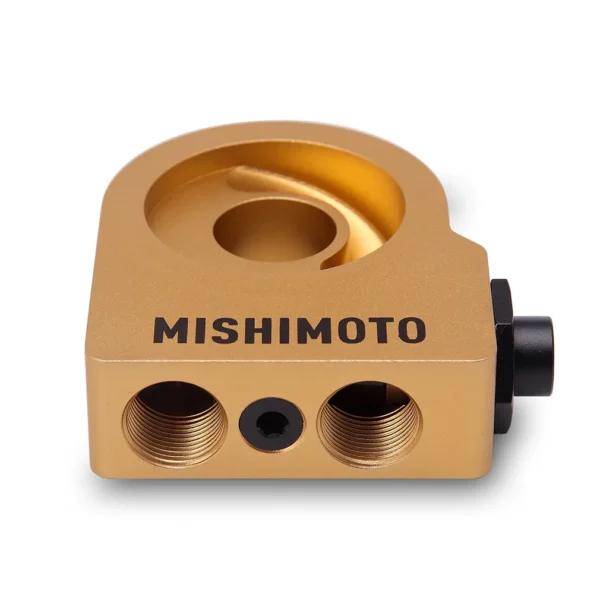

    • (1) Thermostatic Oil Sandwich Plate
    • (1) Stainless-Steel Sandwich Plate Adapter
  • (1) Silicone Hose-
  • (2) Worm Gear Clamps
  • Mishimoto Lifetime Warranty


Recommended torque specification for all straight fittings and banjo bolts: 15-25 lb-ftDo not exceed the maximum torque rating of 35 lb-ft


Additional Information

Weight N/A
Dimensions N/A
Cooler Color & Thermostatic Options

Silver, Non Thermostatic, Black, Non Thermostatic, Silver, Thermostatic, Black Thermostatic


  • 2022+ WRX


Installation Notes

Torque Specs

Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft/lbs (operating range). Do not exceed the maximum torque rating of 35 ft/lbs.

Please Note

It is the installer’s responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation.

Mishimoto fully inspects and cleans all products prior to packaging. However, it is recommended that customers flush the oil cooler with one quart of clean oil prior to installation to remove any debris accumulated during shipping.
