AEM Digital Wideband UEGO Gauge

$184.95

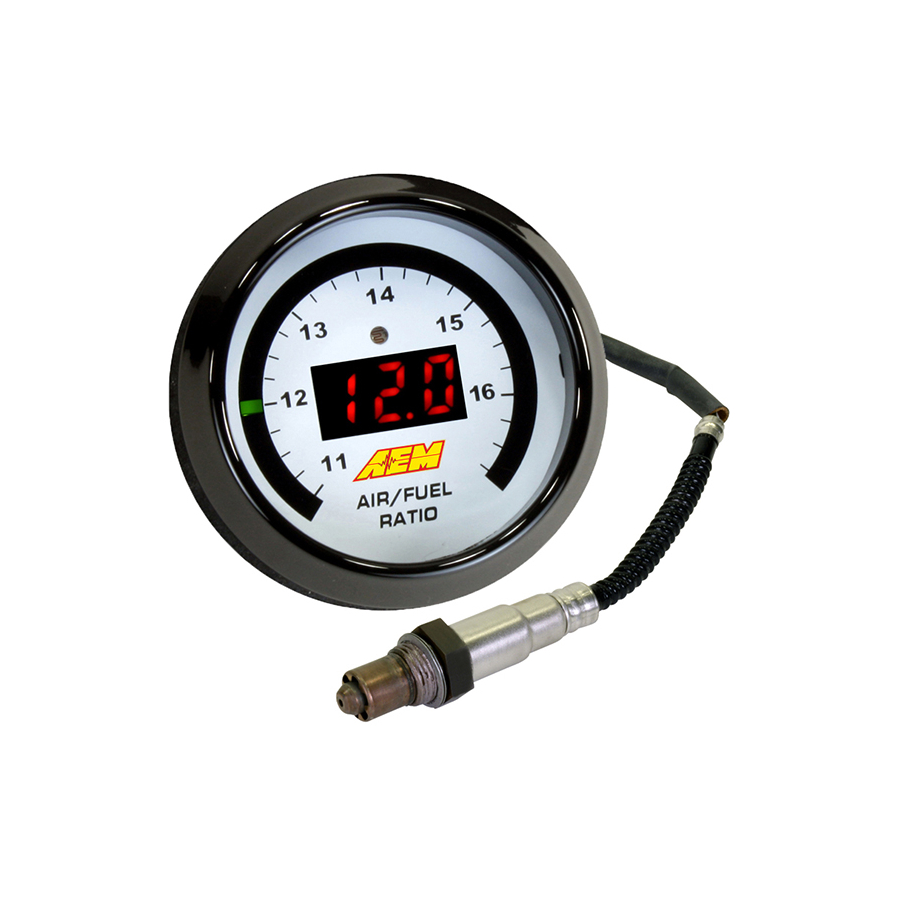

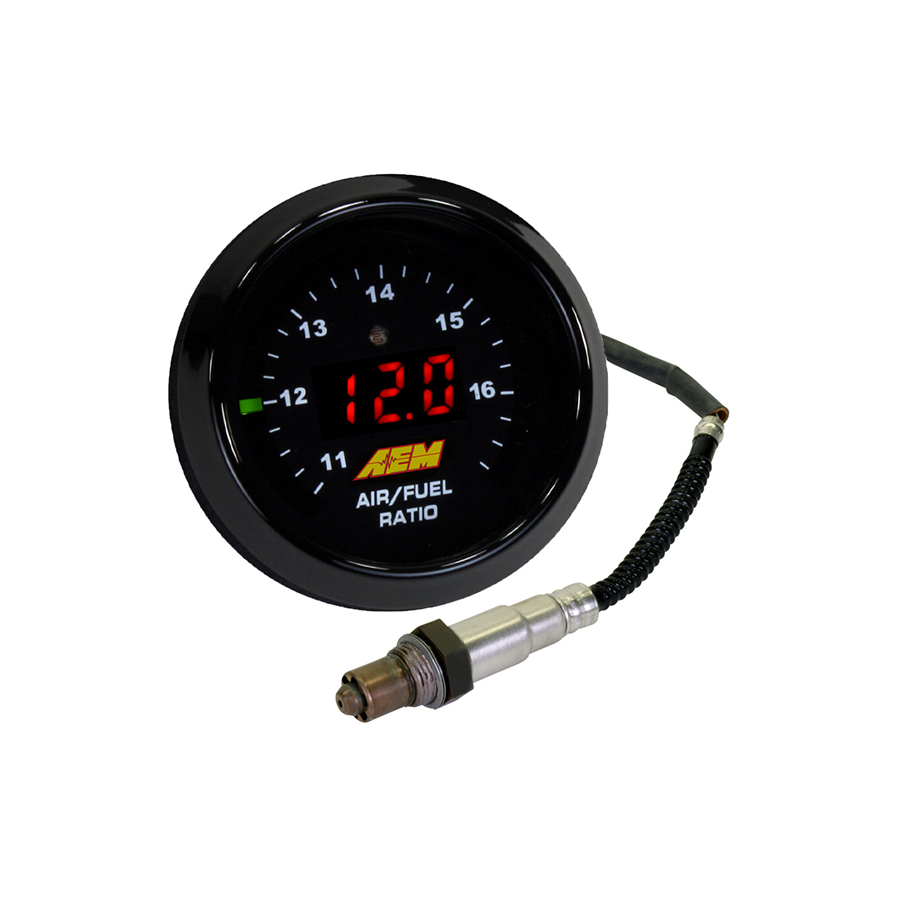

AEMs World-famous Wideband O2 air/fuel ratio UEGO gauge features a digital LED display and sweeping LED ‘needle’ that changes colors as AFR changes from rich to lean. A 52mm (2-1/16″) gauge housing ensures that it will fit in most gauge pods and can be remotely mounted virtually anywhere. All AEM digital gauges feature a 0-5v analog output for use with data loggers and almost any engine management system. Each gauge comes with black and silver bezels and black and white faceplates for multiple color combinations and a custom look (a black Lambda faceplate and black and white Air/Fuel Ratio faceplates).

In stock

This product may not be available for local pick-up. Contact us for more details.

Description

Quick Specs

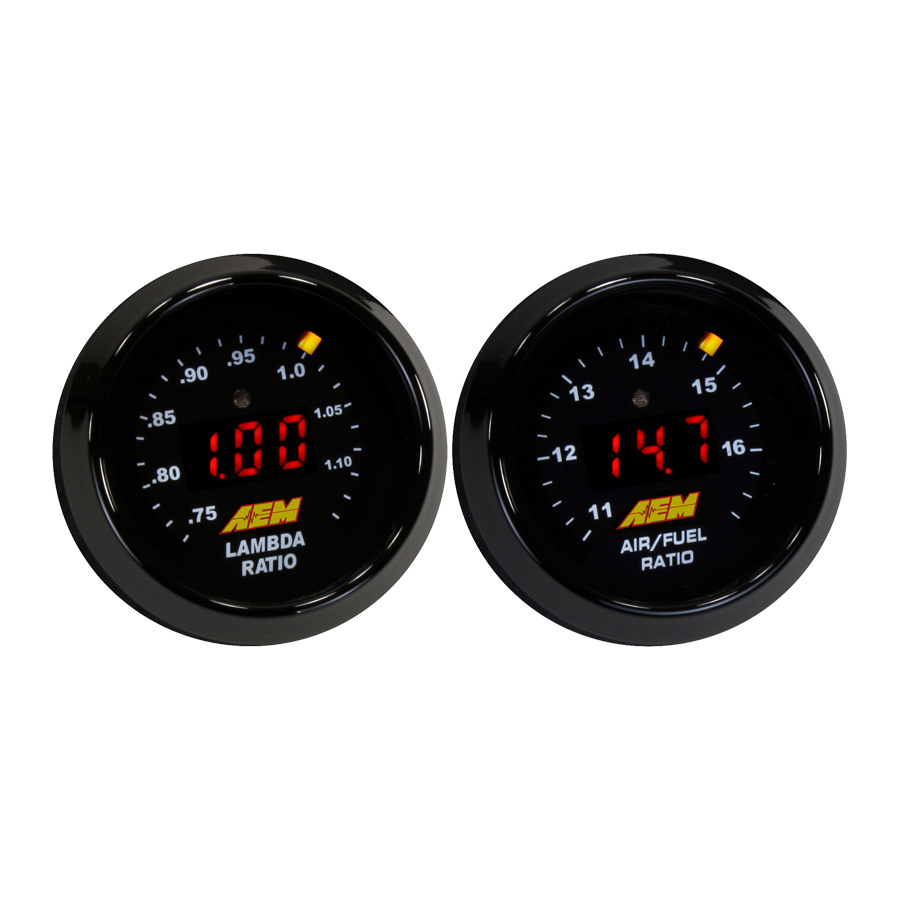

Interchangeable black and white faceplates included for customizing gauge appearance
Bosch 4.9 LSU wideband sensor and weld-in bung included
No free air sensor calibration required – ever

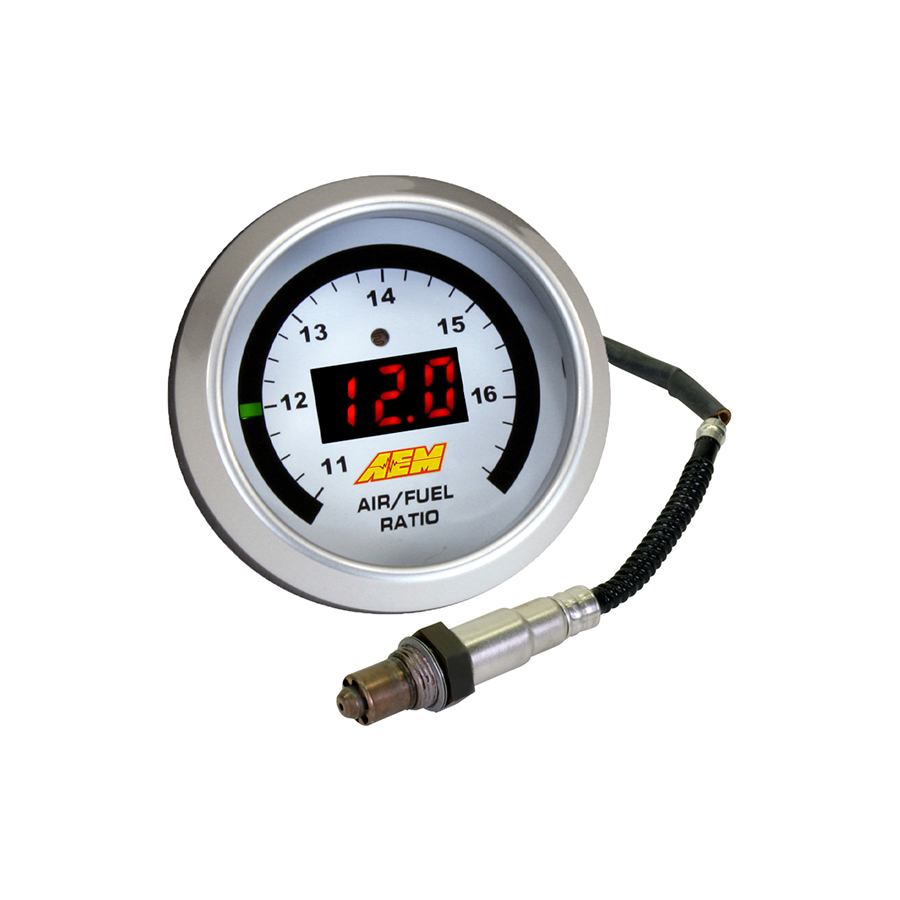

Interchangeable black and silver bezels included
Interchangeable black and white faceplates included
52mm (2-1/16”) gauge housing
0-5v analog output (10-20 AFR range only)

RANGE

Center LED Readout Displays Gasoline Values from 10 to 18 :1 AFR

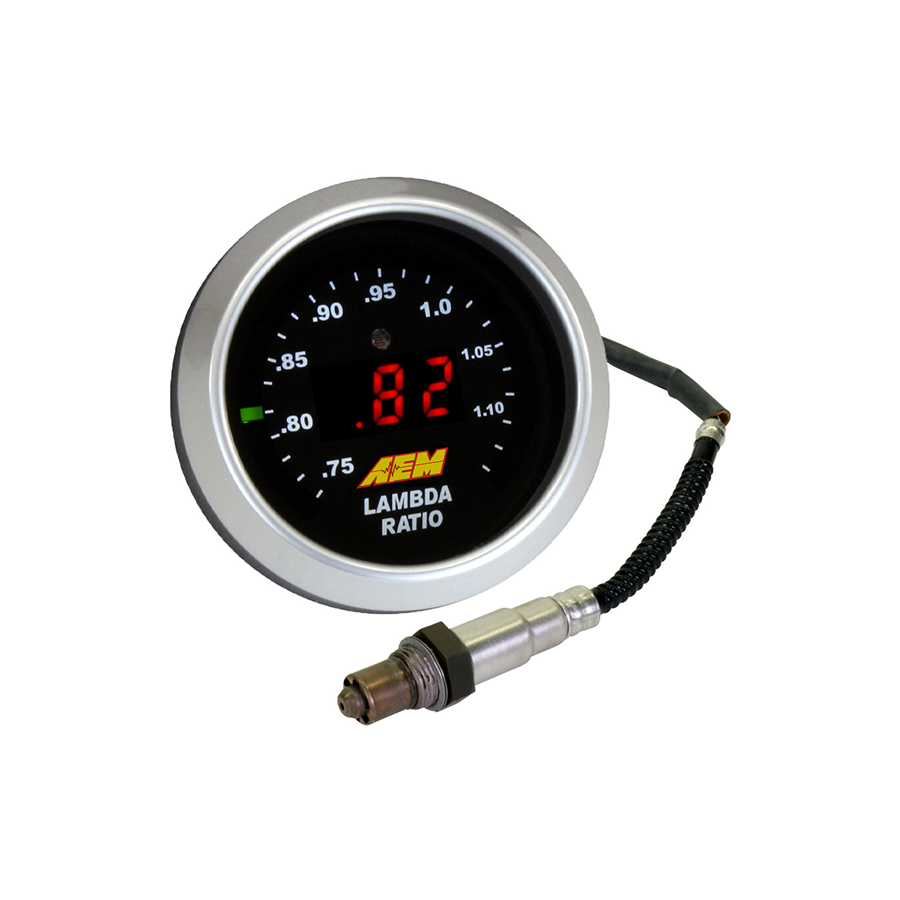

Center LED Readout Displays Lambda values from .68 to 1.23
Outer LED Ring Displays Gasoline values from 11 to 16.75 :1 AFR
Outer LED Ring Displays Lambda values from .75 to 1.14
0-5V Output Gasoline values from 10 to 20 :1 AFR
0-5V Output Lambda values from .68 to 1.36

KIT INCLUDES

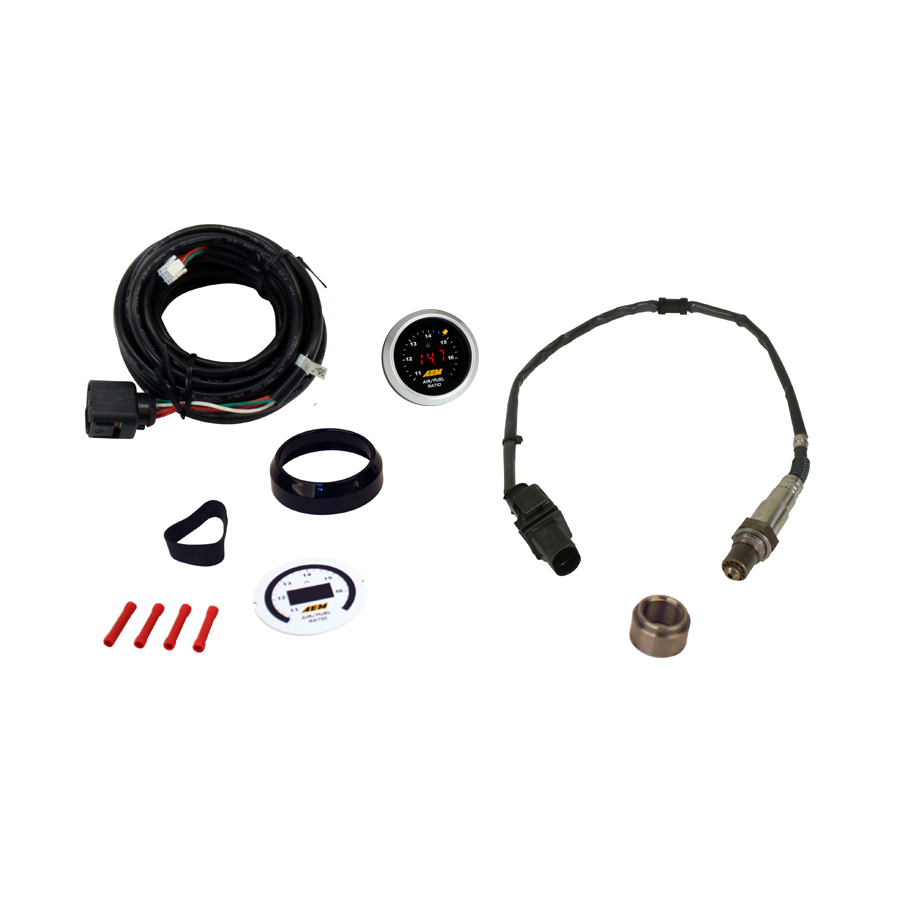

Includes: Digital Wideband Controller Gauge, Bosch LSU 4.9 Sensor, Wiring Harnesses, Black & Silver Bezels, Black & White AFR & Black Lambda Faceplates & O2 Sensor Bung

Additional Information

Weight	1.5 lbs
Dimensions	5.5 × 5.5 × 5.5 in

Compatibility

Universial
