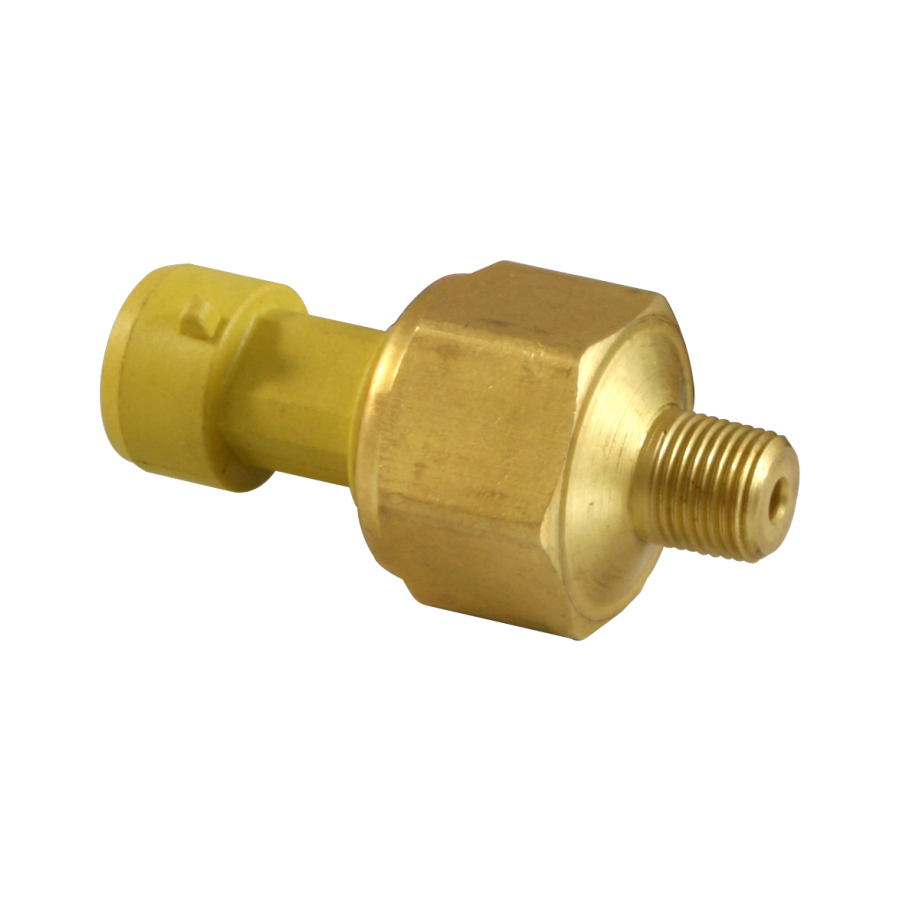

AEM 75 PSIa or 5 Bar Brass Sensor Kit

Sale!

AEM 75 PSIa or 5 Bar Brass Sensor Kit

$71.70

This AEM 75 PSIa or 5 BAR Brass Sensor Kit is can be used as a standalone sensor to measure engine vacuum/boost up to 60.3psi or as a replacement sensor for some AEM Gauges.

Replacement Sensor for AEM Gauges:
  • 30-0308 – X-Series Boost Gauge. -30~60psi
  • 30-4408 – Classic Digital Boost Gauge. -30~50psi

In stock

This product may not be available for local pick-up. Contact us for more details.

FREE SHIPPING ON ORDERS OVER $199

Description

Absolute (PSIa) Brass Pressure Sensors
AEM offer high quality brass PSIa sensors in 30(2BAR), 50 (3.5BAR) and 75 (5BAR). PSIa is referenced to absolute zero. Absolute zero is the pressure measurement when all the pressure exerted by the atmosphere has been removed. The most common use for absolute pressure sensors is reading manifold pressure. PSIa sensors are required of you wish to measure vacuum. A PSIa sensor will read about 14.7 PSI when the sensing element is exposed to atmospheric pressure at sea level however they can be recalibrated to read zero at atmospheric and a negative number at values less than atmospheric pressure.

Which Pressure Sensor is right for you?

There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:

Brass Pressure Sensor = Ruler
Use a Brass Pressure Sensor where you need a good reference to what pressure is being seen.
Example: Brass Pressure Sensor used for a Boost Gauge – Reference/Information for knowing manifold pressure, not for ECU calibration.

Stainless Pressure Sensor = Caliper
Use a SS Pressure Sensor where you need exact details of the pressure.
Example: MAP Sensor information for the ECU – Calibration/crucial information for the ECU.


Quick Specs

  • Stainless-steel sensors accurate to within 1% of full scale (pressure sensors)
  • High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)
  • Connector and pins included

RANGE

  • Boost Pressure: -14.7 – 60.3 PSI
  • Volt Output: 0.5-4.5 vdc

KIT INCLUDES

Includes: AEM 75 PSIa or 5 BAR Brass Sensor 1/8″ NPT Male Thread, Connector, Pins



Additional Information

Weight .3 lbs
Dimensions 3.8 × 3.5 × 2.2 in

Compatibility

  • Universial
