ACT HD/Performance Street Sprung Clutch Kit – 2006-2018.5 WRX


ACT HD/Performance Street Sprung Clutch Kit – 2006-2018.5 WRX


ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.


SKU: SB5-HDSS Categories: , , , , Tag:


**This kit will work on other Subaru models (see compatibility tab) but requires the use of TYF001 Flywheel or equivalent. OEM PT # 12342AA090**

ACT Clutch Kits stand unequaled in terms of consistent pedal feel, high torque capacity, long wear life and durability. In-house manufacturing is critical in tuning components specifically to each individual application, while maintaining the predictable ACT pedal feel across the entire catalog.

This kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency.

Quick Specs

  • Disc Material – Organic
  • Torque Capacity – 420 ft/lbs
  • Torque Capacity over OE 32%
  • 9″ Disk
  • Feel – Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle
  • Recommend use – Street and race

Included in Kit

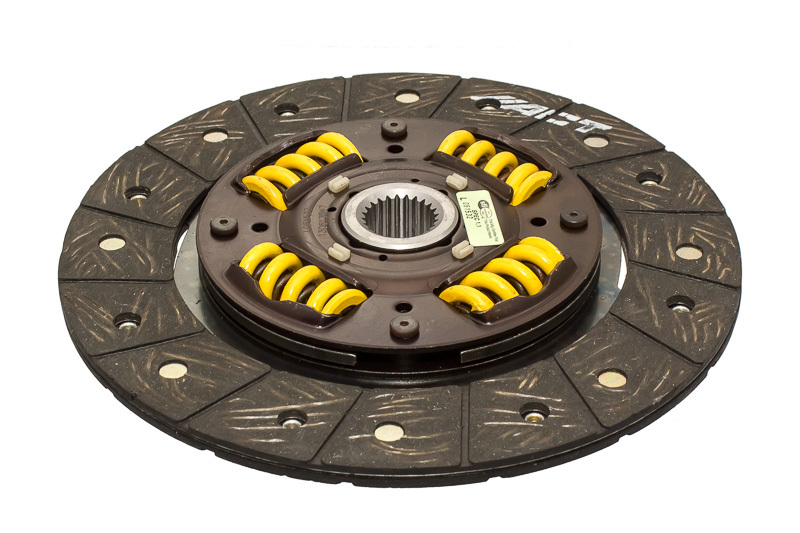

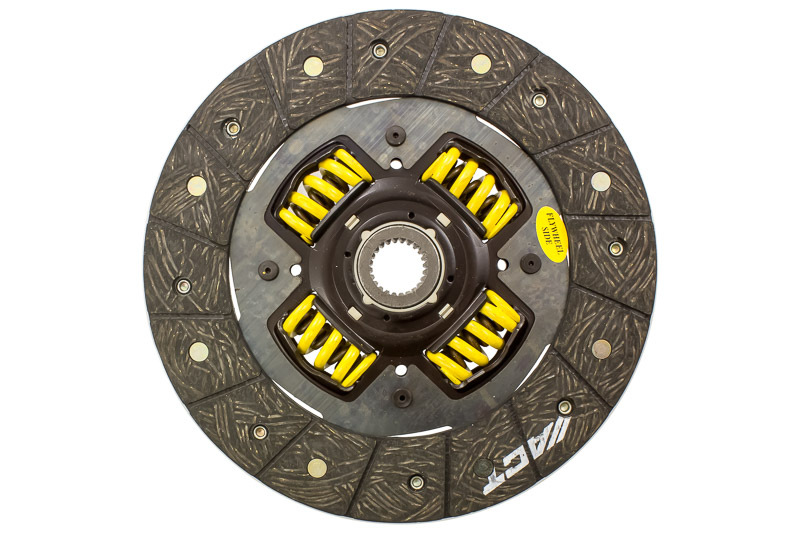

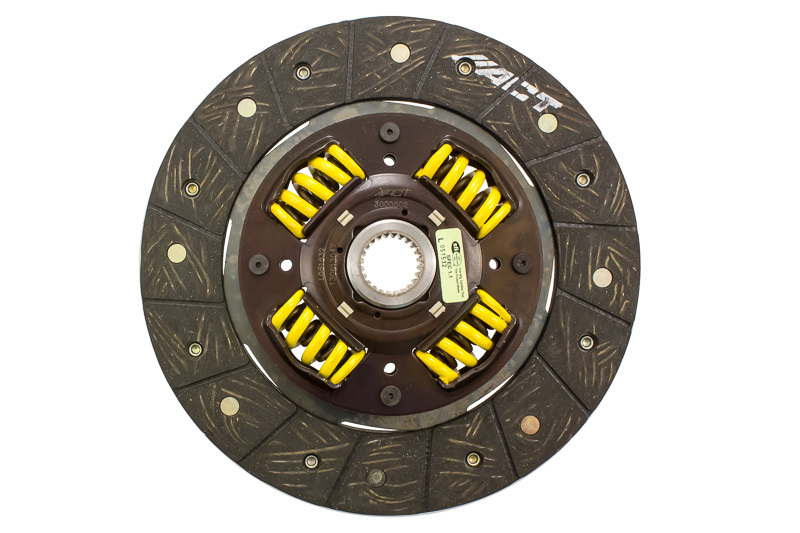

  • Performance Street Sprung Disk – 3000502

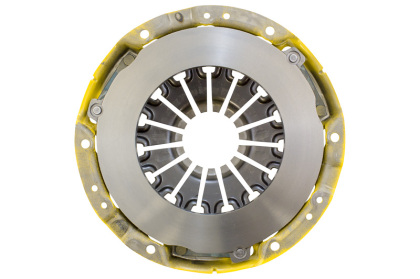

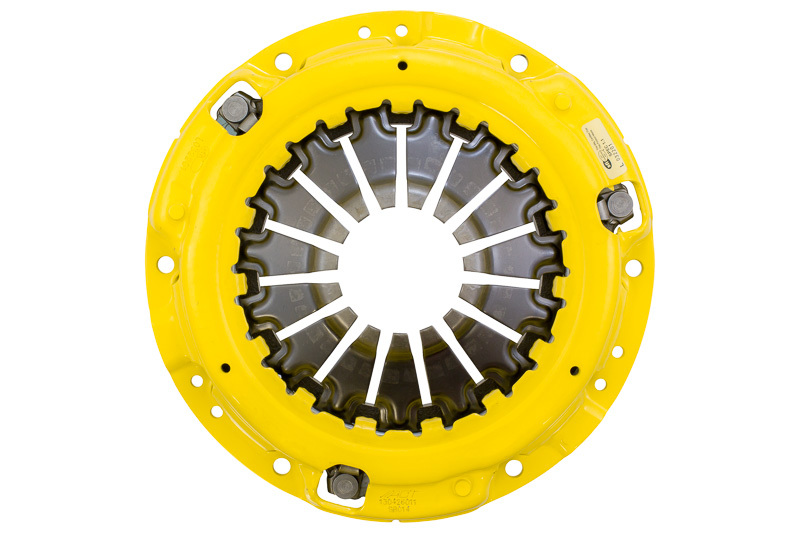

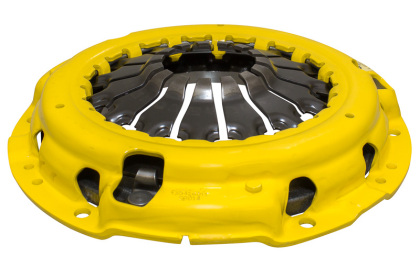

  • Heavy Duty Pressure Plate – SB014
  • Throwout Bearing – RB846
  • Pilot Bearing – PB1004
  • Alignment Tool – AT90


Additional Information

Weight16.6 lbs
Dimensions13.7 × 13.1 × 5.2 in


Direct Fitment

  • 2006-2018.5 WRX

OEM Replacement – Requires TYF001 Flywheel or Equivalent

  • 2018.5-2021 WRX*
    • *Subaru has incorporated 9.4″/240mm clutch components into production during mid-2018MY production starting with VIN J*806877.  2018+ WRX VIN starting with J*806877 and higher requires TYF001 Flywheel or equivalent when using this clutch kit.

Dual Mass Replacement – Requires TYF001 Flywheel or Equivalent

      • 2007-2012 LGT**
      • 2007-2009 OBXT**
      • 2006-2008 FXT**


Installation Guide

Install Guide
